The ZWY80 crawler scraper mucking loader is designed for superior maneuverability and versatility in narrow and confined underground spaces. It features a compact design, a powerful engine, and a tight turning radius, allowing it to easily navigate even the most challenging environments. The scraper attachment allows for easy loading of muck into trucks or other transport vehicles.
ZWY80 Crawler Scraper Mucking Loader
The ZWY80 crawler scraper mucking loader is designed for superior maneuverability and versatility in narrow and confined underground spaces. It features a compact design, a powerful engine, and a tight turning radius, allowing it to easily navigate even the most challenging environments. The scraper attachment allows for easy loading of muck into trucks or other transport vehicles.

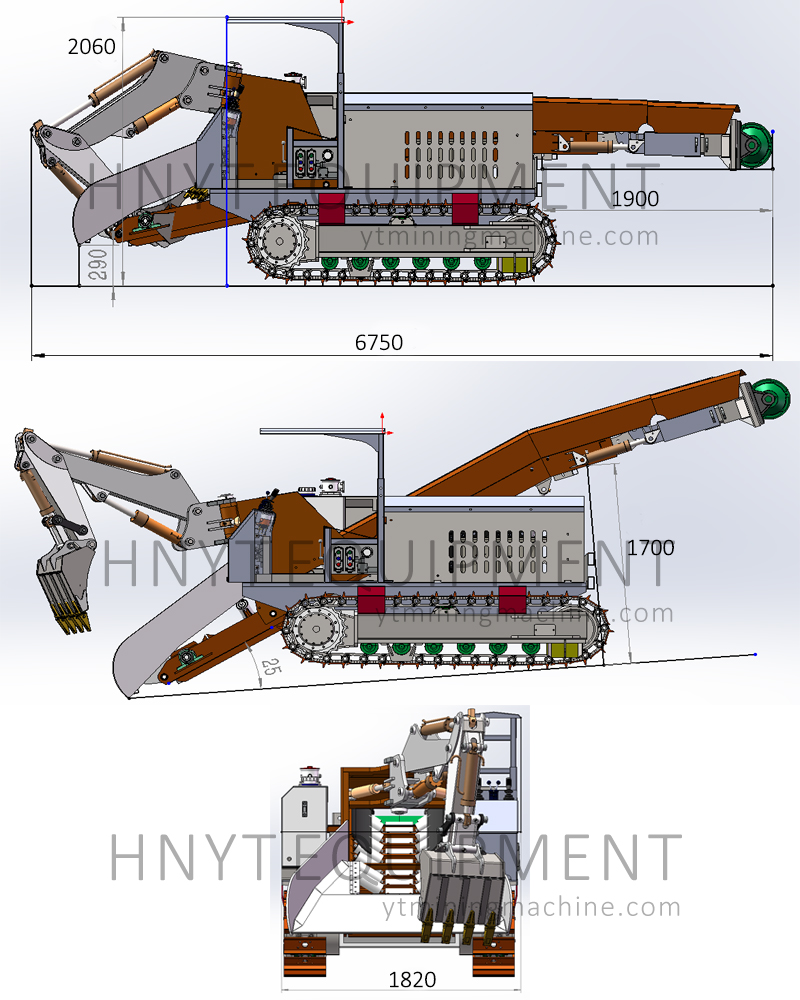

Outline Drawing of crawler mucking loader
| Crawler scraper mucking loader parameter table | ||||
| Index | Unit | ZWY135-80 | ZWY135-120 | |
| Loading capacity | M³/H | ≤80 | ≤120 | |
| Total weight | KG | 6800±200 | 6900±200 | |
| Wheelbase | MM | / | / | |
| Gauge | MM | / | / | |
| Minimum turning radius | R | ≤3 | ≤3 | |
| Minimum ground clearance | MM | 300 | 330 | |
| Digging width | MM | 4100 | 4600 | |
| Digging depth | MM | 550 | 650 | |
| Digging height | MM | 2900 | 3300 | |
| Digging distance | MM | 2010 | 2430 | |
| Unloading height(customizable) | MM | 1700 | 1800 | |
| Unloading distance(customizable) | MM | 1900 | 3200 | |
| Gradeability | ° | ±25 | ±25 | |
| Conveyor belt speed | M/S | 0.54 | 0.54 | |
| Total motor power | KW | 30(Double 15) | 30(Double 15) | |
| Main motor power | KW | 30(Double 15) | 30(Double 15) | |
| Electric drum power | KW | / | / | |
| Fan power | KW | 1.5 | 2 | |
| Walking speed | KM/H | 2.1±0.05 | 2.1±0.05 | |
| Rated operating pressure | Mpa | 18 | 18 | |
| Dimensions | L | MM | 6750±50 | 7500±50 |
| W | MM | 1820±50 | 1950±50 | |
| H | MM | 2060±50 | 2200±50 | |
| Adapation dimension | M | 2.6*2.6 | 2.8*2.8 | |
