The ZWY120 crawler scraper mucking loader is designed for maximum mucking capacity and reach in large underground mining operations. It features a massive bucket capacity, a powerful engine, and a robust design that can handle even the most challenging materials. The long reach of the scraper attachment allows for mucking in areas that would be inaccessible to other types of loaders.
ZWY120 Crawler Scraper Mucking Loader
The ZWY120 crawler scraper mucking loader is designed for maximum mucking capacity and reach in large underground mining operations. It features a massive bucket capacity, a powerful engine, and a robust design that can handle even the most challenging materials. The long reach of the scraper attachment allows for mucking in areas that would be inaccessible to other types of loaders.

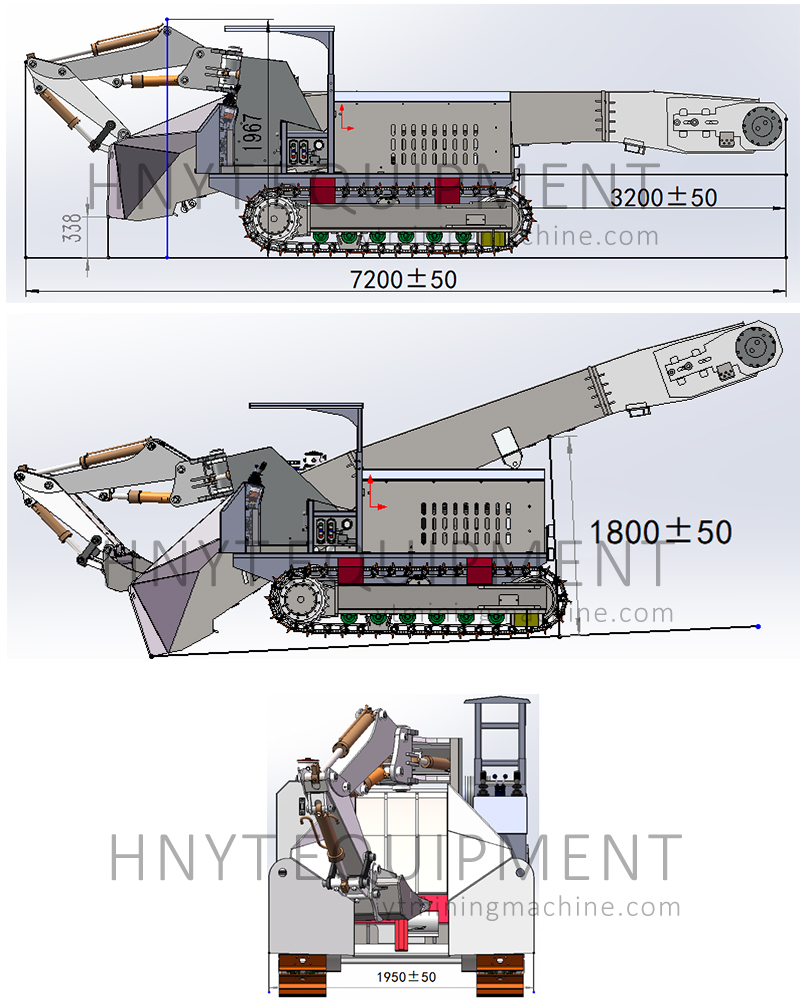

Outline Drawing of crawler mucking loader
←ZWY80 Crawler Scraper Mucking Loader
No Information→
| Crawler scraper mucking loader parameter table | ||||
| Index | Unit | ZWY135-80 | ZWY135-120 | |
| Loading capacity | M³/H | ≤80 | ≤120 | |
| Total weight | KG | 6800±200 | 6900±200 | |
| Wheelbase | MM | / | / | |
| Gauge | MM | / | / | |
| Minimum turning radius | R | ≤3 | ≤3 | |
| Minimum ground clearance | MM | 300 | 330 | |
| Digging width | MM | 4100 | 4600 | |
| Digging depth | MM | 550 | 650 | |
| Digging height | MM | 2900 | 3300 | |
| Digging distance | MM | 2010 | 2430 | |
| Unloading height(customizable) | MM | 1700 | 1800 | |
| Unloading distance(customizable) | MM | 1900 | 3200 | |
| Gradeability | ° | ±25 | ±25 | |
| Conveyor belt speed | M/S | 0.54 | 0.54 | |
| Total motor power | KW | 30(Double 15) | 30(Double 15) | |
| Main motor power | KW | 30(Double 15) | 30(Double 15) | |
| Electric drum power | KW | / | / | |
| Fan power | KW | 1.5 | 2 | |
| Walking speed | KM/H | 2.1±0.05 | 2.1±0.05 | |
| Rated operating pressure | Mpa | 18 | 18 | |
| Dimensions | L | MM | 6750±50 | 7500±50 |
| W | MM | 1820±50 | 1950±50 | |
| H | MM | 2060±50 | 2200±50 | |
| Adapation dimension | M | 2.6*2.6 | 2.8*2.8 | |
