The ZWY60 crawler belt mucking loader is a compact and efficient machine that is ideal for small and medium-sized underground mining operations. It features a robust design, a powerful engine, and a large bucket capacity for its size, making it capable of handling even the most challenging tasks in confined spaces.
ZWY60 Crawler Belt Mucking Loader
The ZWY60 crawler belt mucking loader is a compact and efficient machine that is ideal for small and medium-sized underground mining operations. It features a robust design, a powerful engine, and a large bucket capacity for its size, making it capable of handling even the most challenging tasks in confined spaces.

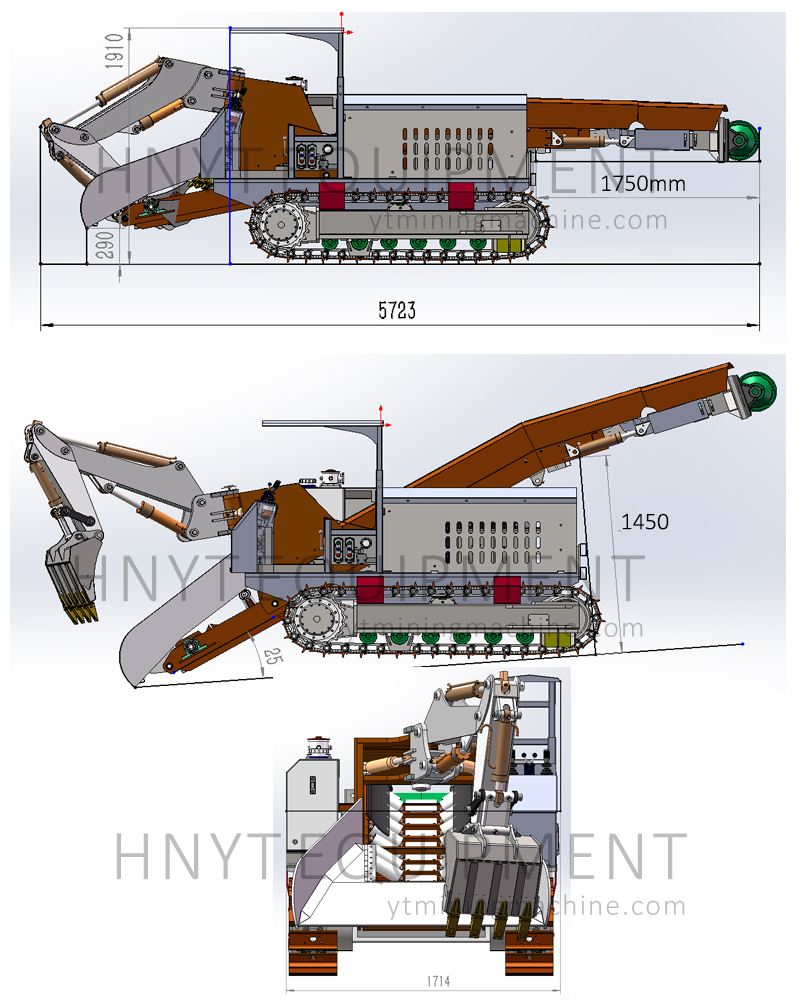

Outline Drawing of crawler mucking loader
| Crawler belt mucking loader parameter table | ||||
| Index | Unit | ZWY135-60 | ZWY135-80 | |
| Loading capacity | M3/H | ≤60 | ≤80 | |
| Total weight | KG | 5200±200 | 6200±200 | |
| Wheelbase | MM | / | / | |
| Gauge | MM | / | / | |
| Minimum turning radius | R | ≤3 | ≤3 | |
| Minimum ground clearance | MM | 280 | 300 | |
| Digging width | MM | 3500 | 4100 | |
| Digging depth | MM | 550 | 550 | |
| Digging height | MM | 2700 | 2800 | |
| Digging distance | MM | 1650 | 2010 | |
| Unloading height(customizable) | MM | 1450 | 1700 | |
| Unloading distance(customizable) | MM | 1750 | 2100 | |
| Gradeability | ° | ±12 | ±12 | |
| Conveyor belt speed | M/S | 0.8 | 0.8 | |
| Total motor power | KW | 22(Double 11) | 30(Double 15) | |
| Main motor power | KW | 22(Double 11) | 30(Double 15) | |
| Electric drum power | KW | 5.5 | / | |
| Fan power | KW | 0.8 | 1.5 | |
| Walking speed | KM/H | 2.1±0.05 | 2.1±0.05 | |
| Rated operating pressure | Mpa | 18 | 18 | |
| Dimensions | L | MM | 6030±50 | 6750±50 |
| W | MM | 1660±50 | 1820±50 | |
| H | MM | 1900±50 | 2060±50 | |
| Adapation dimension | M | 2.4*2.4 | 2.6*2.6 | |
