Mining Wagons / Rail Wagons for transportation

Application characteristics and working environment ofbucket-tippingminecar Thebucket-tippingminecaris a narrow-gauge railway transportation vehicle for transporting coal ore ballast and other bulk materials in the mine. Generally it must betract

CJY10 Ton Underground Mining Trolley Locomotive

Application characteristics and working environment of bucket-tipping mine car
The bucket-tipping mine car is a narrow-gauge railway transportation vehicle for transporting coal ore ballast and other bulk materials in the mine. Generally it must be tract by a locomotive or a winch.

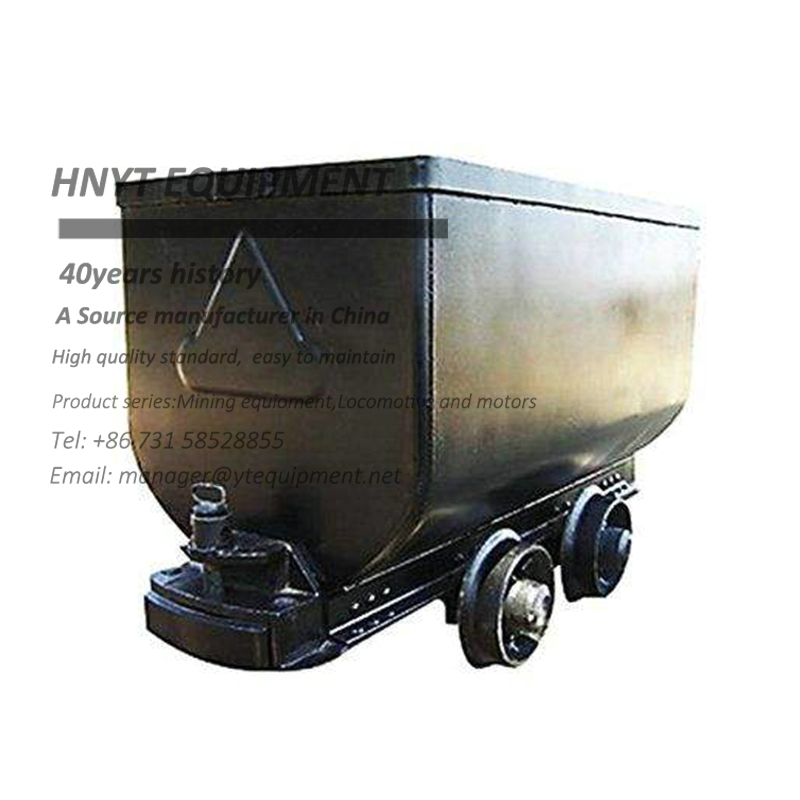

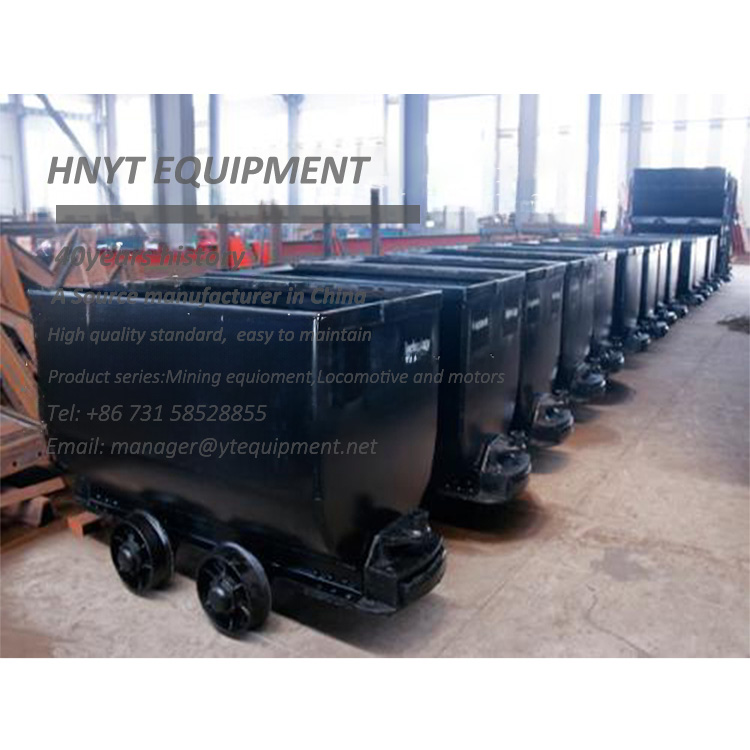

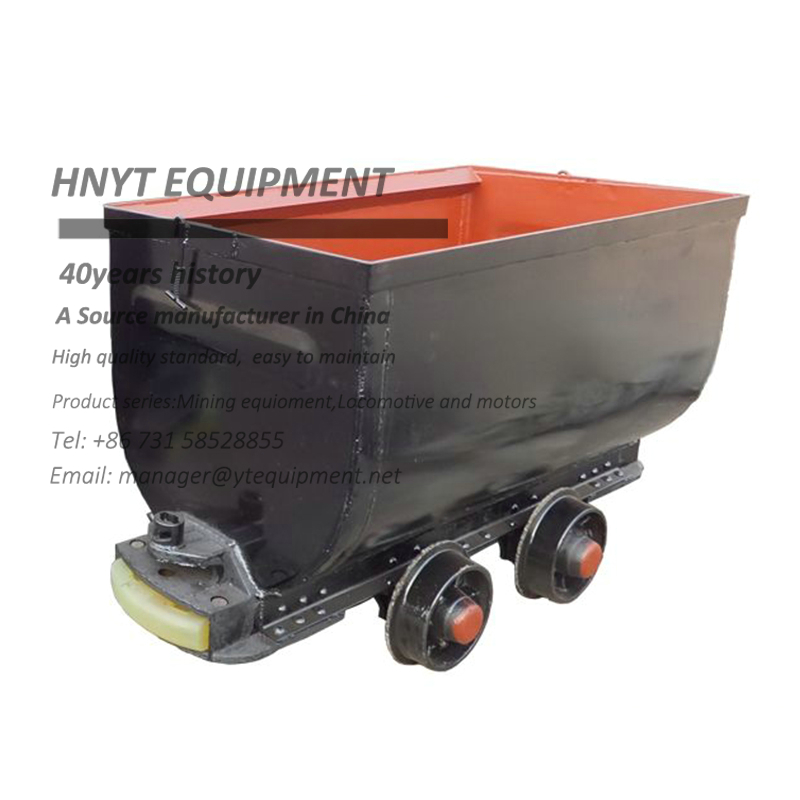

According to different structures and unloading methods they are divided into four categories: bucket-tipping mine car fixed mine car single-side curved rail dumping mine car and bottom-dumping mine car.

Operation video

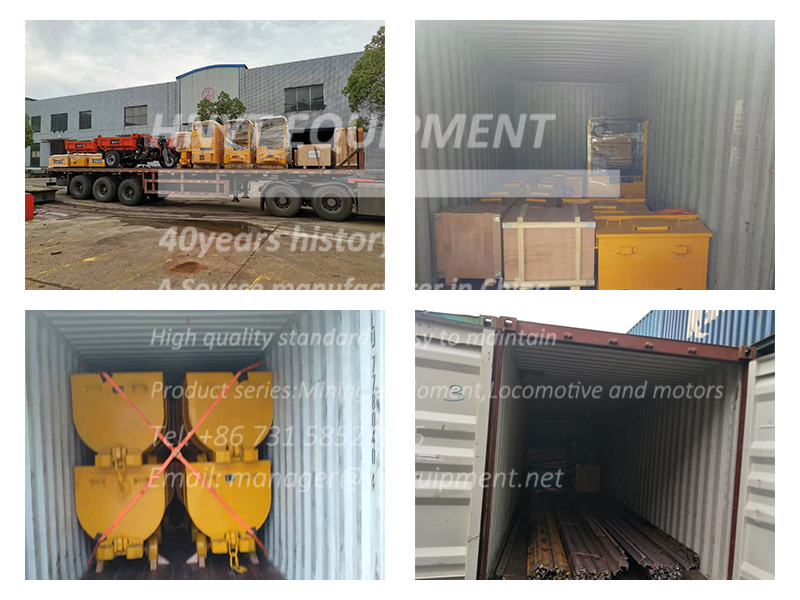

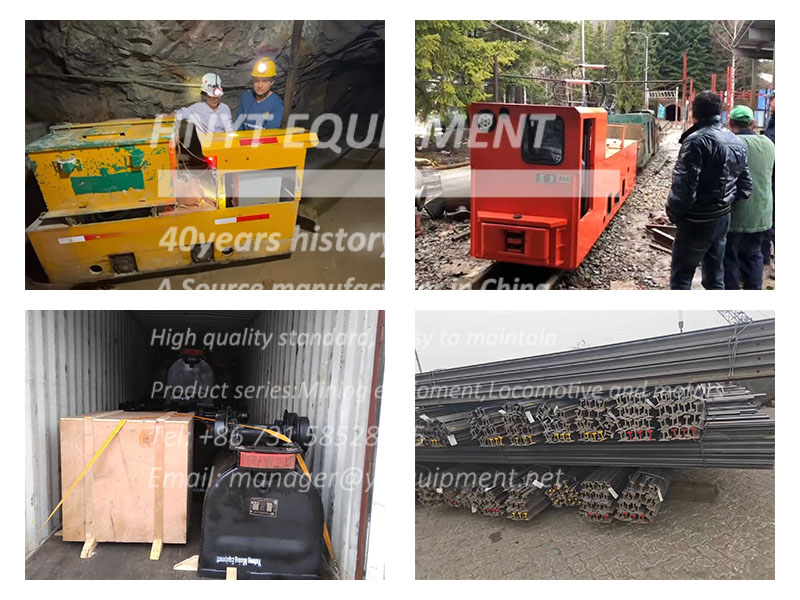

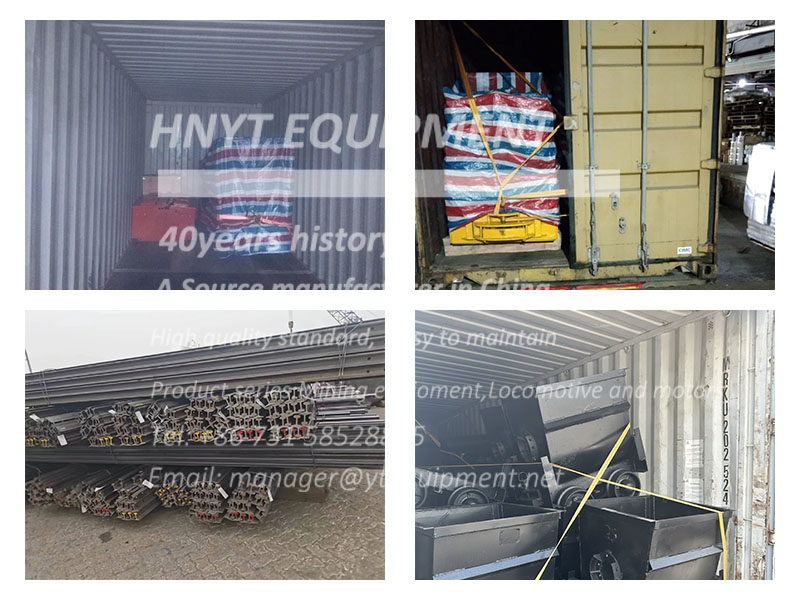

Shipment and one site details








No Information

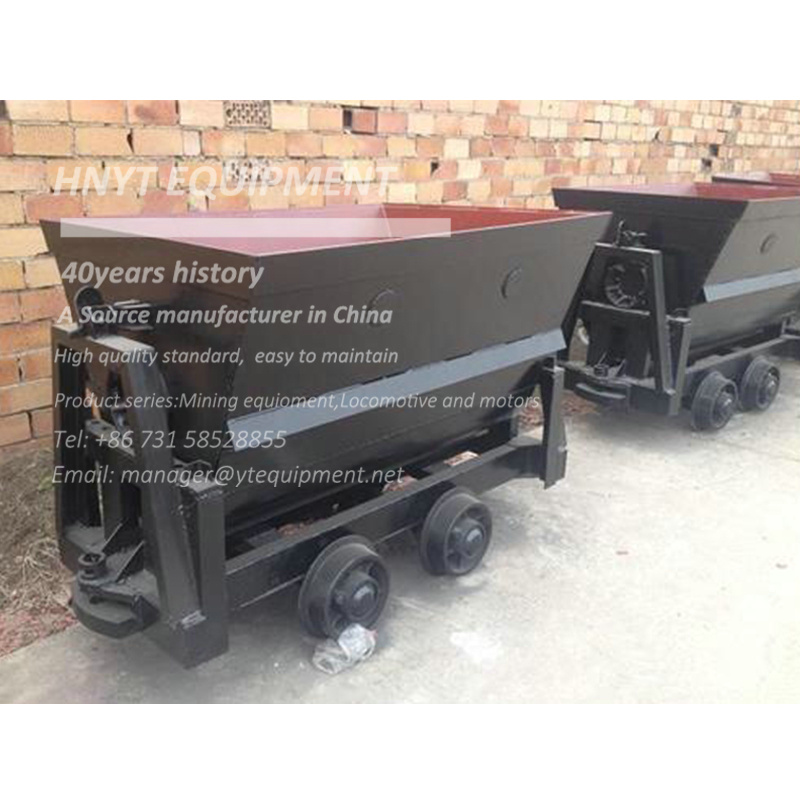

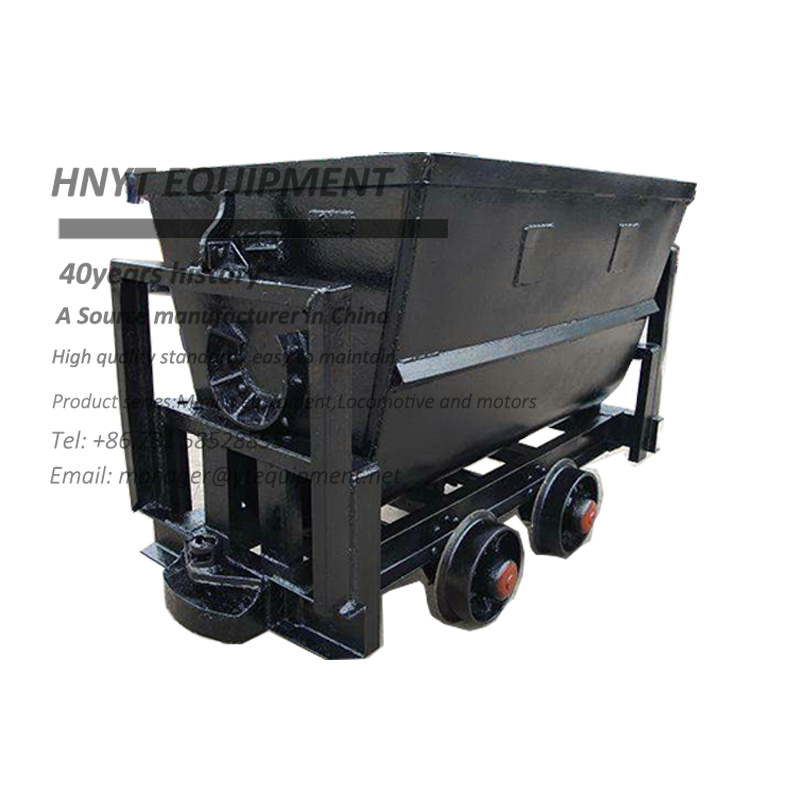

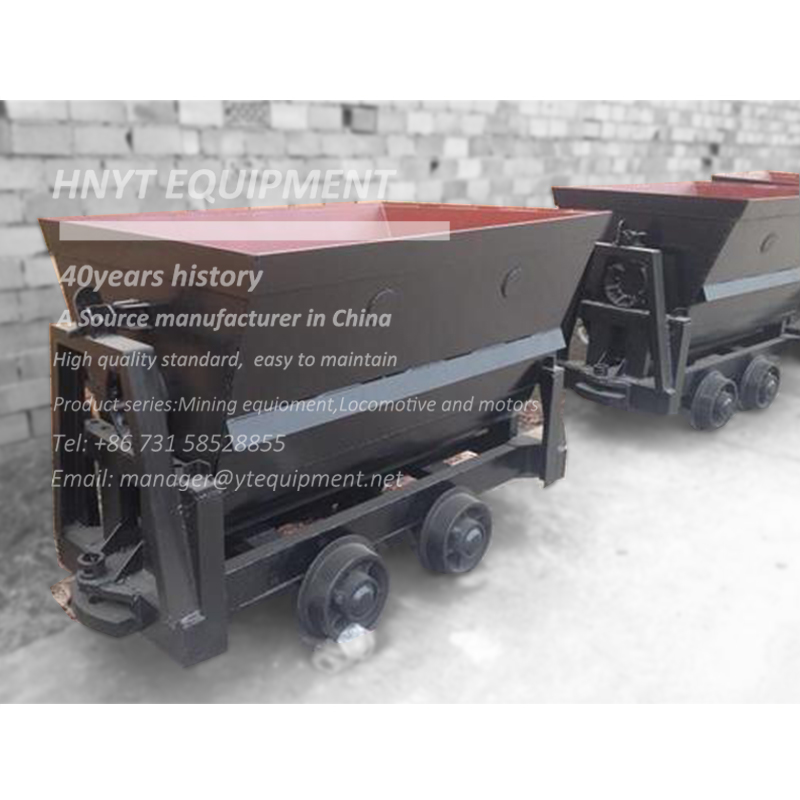

Bucket-tipping mine car/Wagons

Technical performance table of bucket-tipping mine car

 VolumeNominal loading
Maximum loading
GaugeDimensionsWheel baseWheel diameterHaule heightTractionMinimum plane operating radius Body weightUnloading angle
Length
Width

High
 m3kgkgG mmL mmB mmH mmC mmD mmh mmkNmkg°
KFU0.75-60.75180018006001700980125060030032060974040
KFU1.0-612000250060019701070125060030032060968040
