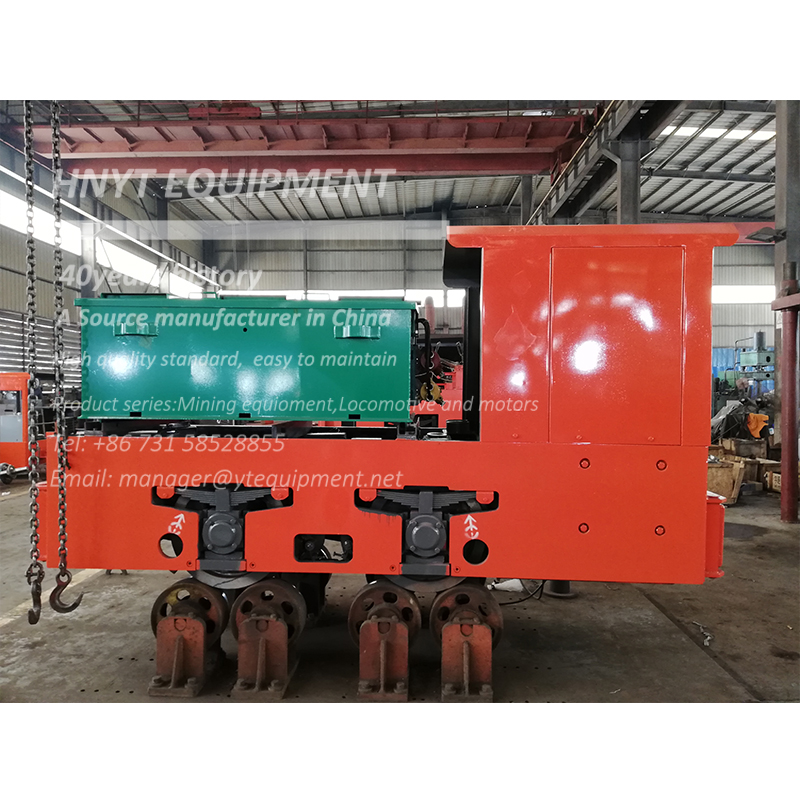

CAY6/6,7,9GB 6 Ton Battery electric powered locomotive

6 Ton Battery electric powered locomotive, the model is CAY6/6,7,9GB. It is a normal type battery electric powered locomotive that could applied in the places without explosion gas, if need explosion-proof, please require. The Brake method could be c

CJY10 Ton Underground Mining Trolley Locomotive

6 Ton Battery electric powered locomotive, the model is CAY6/6,7,9GB.
It is a normal type battery electric powered locomotive that could applied in the places without explosion gas, if need explosion-proof, please require.
The Brake method could be choosed with Mechnical or Hydraulic.
Traction Force of this locomotive could up to 60 Ton.

Locomotive Avantage Please ClickLocomotive Advantages.

Operation video:



Shipment and one site details

5t battery locomotive 2.jpg

shipment and site 6.jpg

shipment and site 1.jpg

shipment and site 7.jpg

shipment and site 2.jpg





5-ton battery locomotive 29.jpg

Model CTY6/679G(B)
Total-weight 6t
Track gague 500600762 or 900mm
Tracktion force 7.06kN
Max traction 12.26kN
Speed 7km/h
Battery device Voltage 90V
Capacity 385Ah
Motor power 7.5 kW×2
dimensions Lenght 3170mm
Width 9201082 or 1220mm
Height 1550mm
Wheel base 850mm
Wheel diameter520mm
Min turn radius 6m
Controlling way Resistence or IGBT
Brake way Mechnical brake or hydraulic
