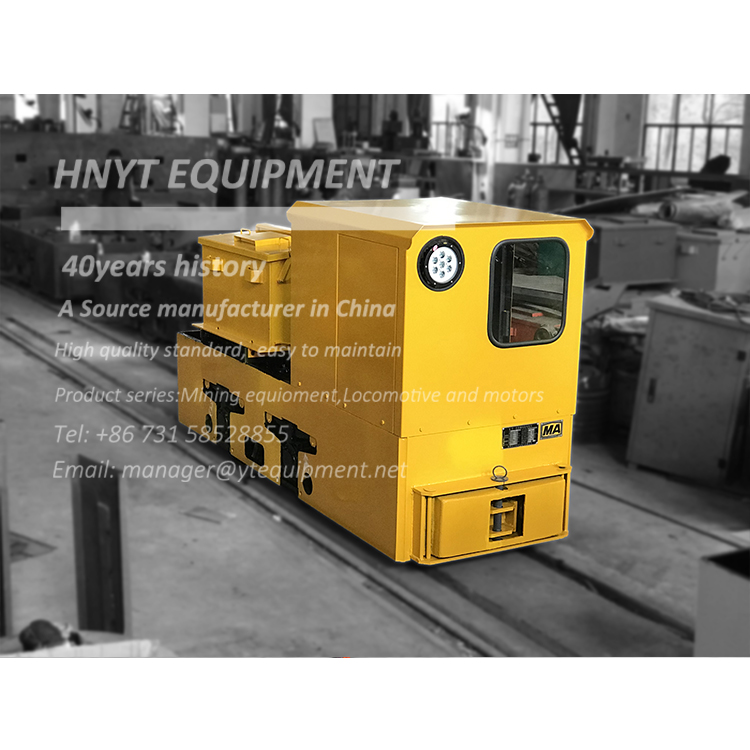

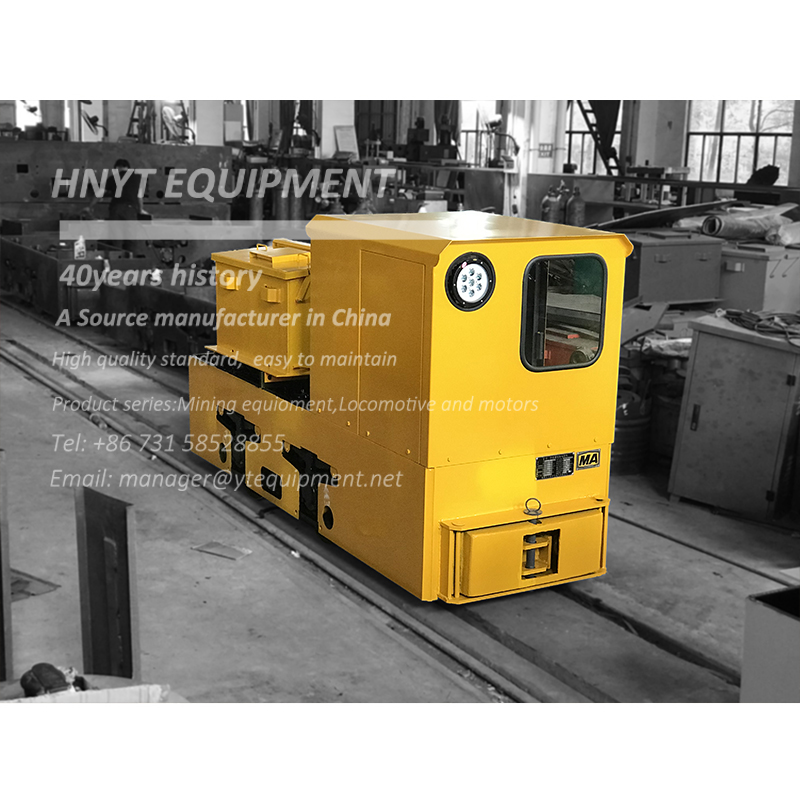

3 Ton Battery Locomotive(CTY3/6GB)

This 3 Ton Battery Locomotive isSpecial customized heavy-duty type it couldmeet the requirements of different mine environments and high requirements for cargo capacity. It could be applied in both gold mining and coal mining with the smaller size

CJY10 Ton Underground Mining Trolley Locomotive
This 3 Ton Battery Locomotive is Special customized heavy-duty type it could meet the requirements of different mine environments and high requirements for cargo capacity.
It could be applied in both gold mining and coal mining with the smaller size and easy to operate.

Motor powe: 4.5kw*1
Battery Voltage: 48V330AH
Track gauge: 500.600.762 or 900


Locomotive Avantage Please Click: Locomotive Advantages.

Operation video


Technical Specification

                                                                                                                     Model CTY3/679G(B)
Dead weight 3t
Track gauge 600762 or 900mm
Traction force 2.55kN
Max traction force 6.13kN
Speed 4.54km/h
Battery device Lithium battery 51.2v 300ah
Lead acid battery 48V330AH
Motor power 4.5kW×1
Dimensions Length 2330mm
width 9141076 or 1212mm
Height 1550mm
Wheelbase 650mm
Wheel diameter Φ460mm
Min turn radius 5m
Controlling way Resistance or IGBT chopper
Brake way Mechanical brake
