This heavy-duty electric tricycle is the ultimate choice for demanding transportation tasks. It features a 4-ton load capacity, a powerful motor, and a robust design, making it capable of handling even the most challenging loads.

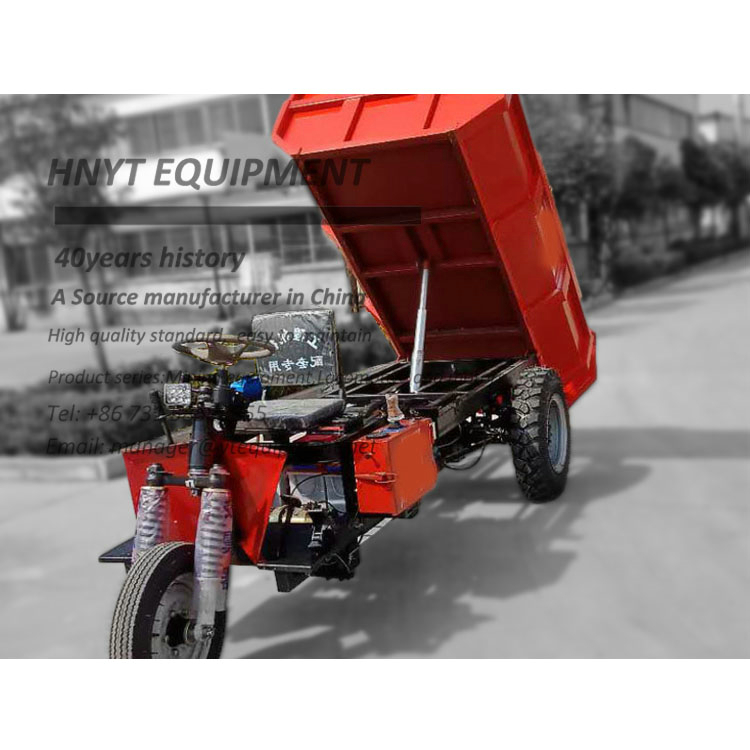

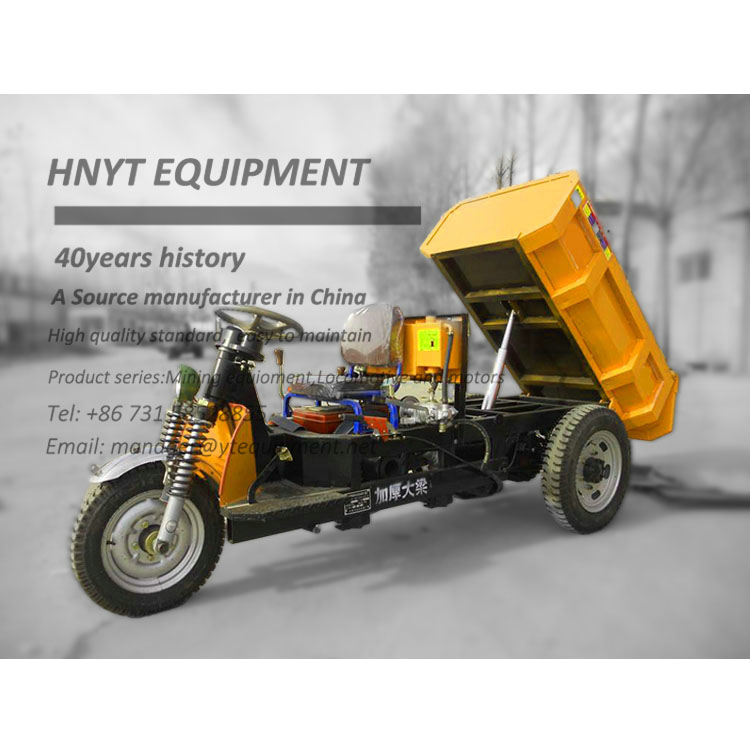

Powerful 4 ton mining electric tricycle
This heavy-duty electric tricycle is the ultimate choice for demanding transportation tasks. It features a 4-ton load capacity, a powerful motor, and a robust design, making it capable of handling even the most challenging loads.

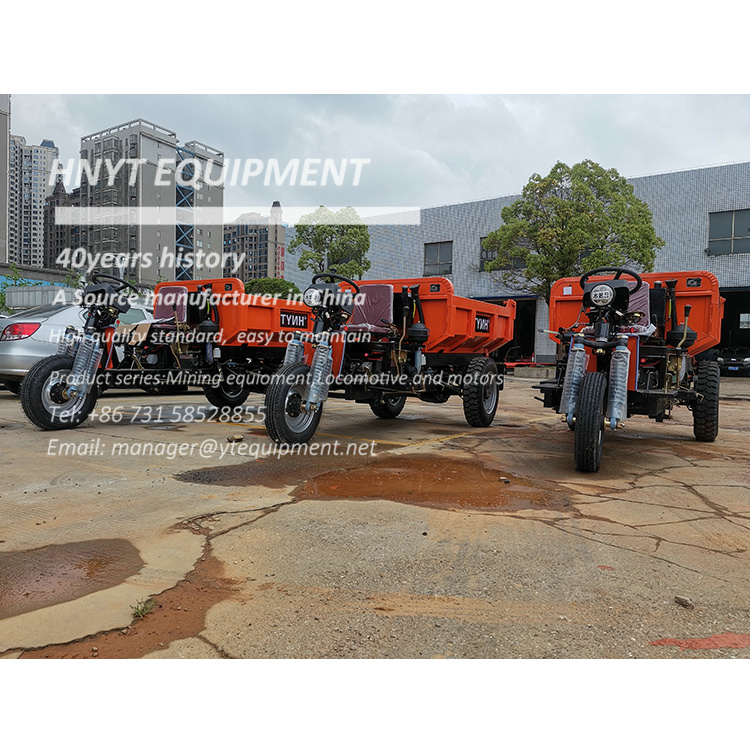

Shipment and site details
←Versatile 3 ton electric tricycle for transportation
No Information→
| Product model | Unit | 800 kg | 1 TON | 2 TON | 3 TON | 4 TON |
| Carriage volume | m3 | 0.6 | 1 | 1 | 1.2 | 1.2 |
| Loading capacity | Kg | 800 | 1000 | 2000 | 3000 | 4000 |
| Unloading height | mm | 2200 | 2250 | 2250 | 2350 | 2350 |
| Loading height | mm | 1250 | 1250 | 1250 | 1250 | 1250 |
| Min ground clearance | mm | ≥240 | ≥240 | ≥240 | ≥240 | ≥240 |
| Min turning radius | mm | ≤4800 | ≤4800 | ≤4800 | ≤4900 | ≤4900 |
| Gradeability (heavy load) | 。 | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 |
| Maximum lift angle of carriage | 。 | 45±2 | 45±2 | 45±2 | 45±2 | 45±2 |
| Tyre model | Front tire 450-12 Rear tire 500-14 | Front tire 450-14 Rear tire 600-16 | Front tire 500-14 Rear tire 650-16 steel wire tires | Front tire 600-14 Rear tire 700-16 steel wire tires | Front tire 600-14 Rear tire 700-16 steel wire tires | |
| Damping system | Front: Damping shock absorber Rear: 13 thick leaf springs | Front: Damping shock absorber Rear: 13 thick leaf springs | Front: Damping shock absorber Rear: 13 thick leaf springs | Front: Damping shock absorber Rear: 13 thick leaf springs | Front: Damping shock absorber Rear: 13 thick leaf springs | |
| Operation System | Medium disk (rack and pinion) | Medium disk ( turbine ) | Medium disk ( turbine ) | Medium disk ( turbine ) | Medium disk ( turbine ) | |
| Light System | hw | Front and rear LED lights | Front and rear LED lights | Front and rear LED lights | Front and rear LED lights | Front and rear LED lights |
| Max Speed | km/h | 25km/h | 25km/h | 25km/h | 25km/h | 20km/h |
| Motor Power | Kw | 3 | 3 | 5 | 10 | 10 |
| Cargo demension | mm | 1700*1000*400 | 1800*1200*450 | 1800*1200*450 | 2200*1380*450 | 2200*1380*450 |
| Container board thickness | mm | Bottom 2 mm, sides 3 mm | Bottom 5 mm, sides 5 mm | Bottom 5 mm, sides 5 mm | Bottom 5 mm, sides 5 mm | Bottom 5 mm, sides 5 mm |
| Voltage | v | 72 | 72 | 72 | 72 | 72 |
| Quantities of Battery | ea | 6 blocks, 12v, 100Ah maintenance-free | 6 blocks, 12v, 100Ah maintenance-free | 9 blocks, 8v, 150Ah maintenance-free | 12 blocks, 6v, 200Ah maintenance-free | 12 blocks, 6v, 200Ah maintenance-free |
| Demension (L*W*H) | mm | 3160*1070*1260 | 3500*1250*1250 | 3500*1250*1250 | 3800*1380*1250 | 3700*1380*1250 |
| Frame | Rectangular tube welding | Rectangular tube welding | Rectangular tube welding | Rectangular tube welding | Rectangular tube welding Main beam 50*140*5mm thickened | |
| Weight | Kg | 1160 | 1160 | 1320 | 1320 | |
| Control system | Smart controller | Smart controller | Smart controller | Smart controller | Smart controller |
