This compact and maneuverable electric tricycle is perfect for navigating narrow alleys and tight spaces. With a powerful 800kg load capacity and a 25km/h top speed, it can easily handle your daily transportation needs.

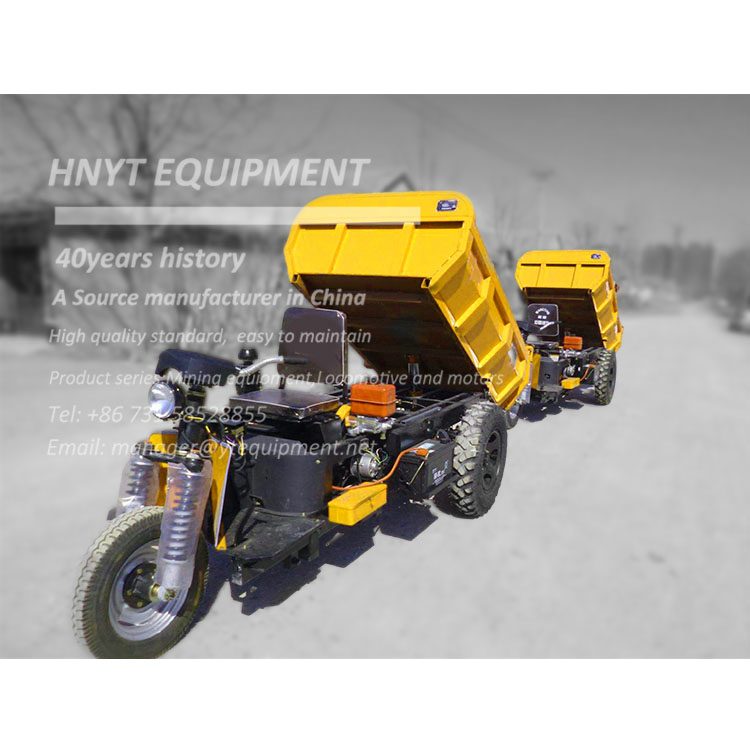

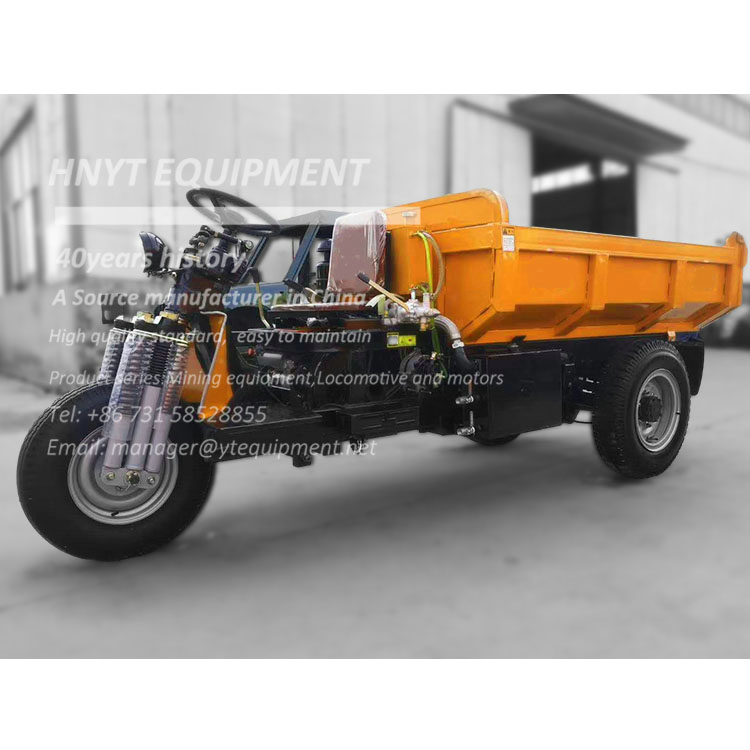

800kg mining electric tricycle for small tunnel
This compact and maneuverable electric tricycle is perfect for navigating narrow alleys and tight spaces. With a powerful 800kg load capacity and a 25km/h top speed, it can easily handle your daily transportation needs.
Shipment and site details
| Product model | Unit | 800 kg | 1 TON | 2 TON | 3 TON | 4 TON |
| Carriage volume | m3 | 0.6 | 1 | 1 | 1.2 | 1.2 |
| Loading capacity | Kg | 800 | 1000 | 2000 | 3000 | 4000 |
| Unloading height | mm | 2200 | 2250 | 2250 | 2350 | 2350 |
| Loading height | mm | 1250 | 1250 | 1250 | 1250 | 1250 |
| Min ground clearance | mm | ≥240 | ≥240 | ≥240 | ≥240 | ≥240 |
| Min turning radius | mm | ≤4800 | ≤4800 | ≤4800 | ≤4900 | ≤4900 |
| Gradeability (heavy load) | 。 | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 |
| Maximum lift angle of carriage | 。 | 45±2 | 45±2 | 45±2 | 45±2 | 45±2 |
| Tyre model | Front tire 450-12 Rear tire 500-14 | Front tire 450-14 Rear tire 600-16 | Front tire 500-14 Rear tire 650-16 steel wire tires | Front tire 600-14 Rear tire 700-16 steel wire tires | Front tire 600-14 Rear tire 700-16 steel wire tires | |
| Damping system | Front: Damping shock absorber Rear: 13 thick leaf springs | Front: Damping shock absorber Rear: 13 thick leaf springs | Front: Damping shock absorber Rear: 13 thick leaf springs | Front: Damping shock absorber Rear: 13 thick leaf springs | Front: Damping shock absorber Rear: 13 thick leaf springs | |
| Operation System | Medium disk (rack and pinion) | Medium disk ( turbine ) | Medium disk ( turbine ) | Medium disk ( turbine ) | Medium disk ( turbine ) | |
| Light System | hw | Front and rear LED lights | Front and rear LED lights | Front and rear LED lights | Front and rear LED lights | Front and rear LED lights |
| Max Speed | km/h | 25km/h | 25km/h | 25km/h | 25km/h | 20km/h |
| Motor Power | Kw | 3 | 3 | 5 | 10 | 10 |
| Cargo demension | mm | 1700*1000*400 | 1800*1200*450 | 1800*1200*450 | 2200*1380*450 | 2200*1380*450 |
| Container board thickness | mm | Bottom 2 mm, sides 3 mm | Bottom 5 mm, sides 5 mm | Bottom 5 mm, sides 5 mm | Bottom 5 mm, sides 5 mm | Bottom 5 mm, sides 5 mm |
| Voltage | v | 72 | 72 | 72 | 72 | 72 |
| Quantities of Battery | ea | 6 blocks, 12v, 100Ah maintenance-free | 6 blocks, 12v, 100Ah maintenance-free | 9 blocks, 8v, 150Ah maintenance-free | 12 blocks, 6v, 200Ah maintenance-free | 12 blocks, 6v, 200Ah maintenance-free |
| Demension (L*W*H) | mm | 3160*1070*1260 | 3500*1250*1250 | 3500*1250*1250 | 3800*1380*1250 | 3700*1380*1250 |
| Frame | Rectangular tube welding | Rectangular tube welding | Rectangular tube welding | Rectangular tube welding | Rectangular tube welding Main beam 50*140*5mm thickened | |
| Weight | Kg | 1160 | 1160 | 1320 | 1320 | |
| Control system | Smart controller | Smart controller | Smart controller | Smart controller | Smart controller |
