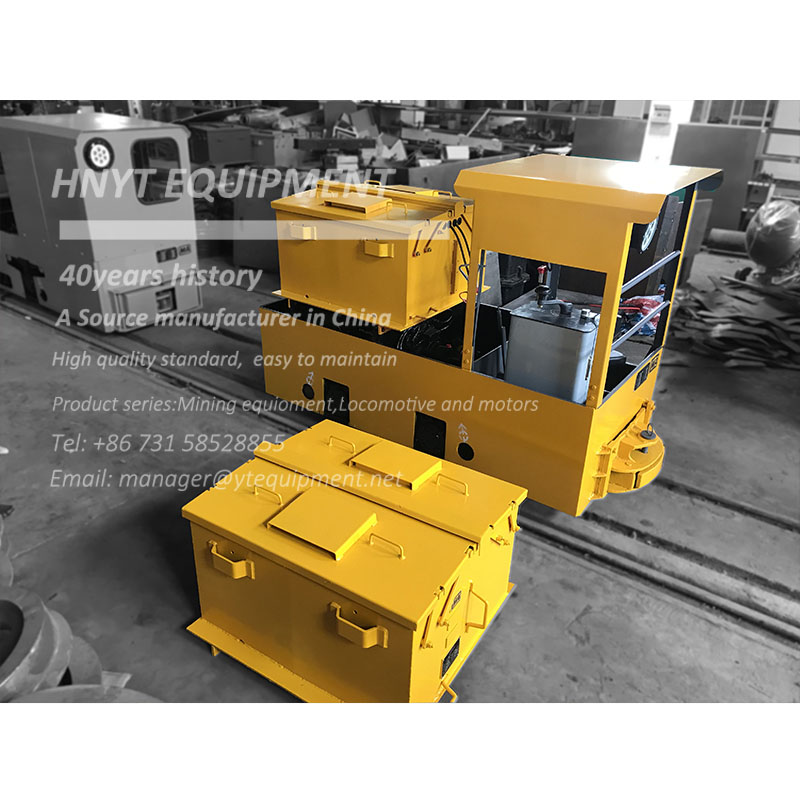

China 2.5 Ton Explosion-proof Battery locomotive

China 2.5 Ton Explosion-proof battery locomotive is applied in coal mining or place with huge humidity, this locomotive adopts IGBT controller, which have the advantages of energy-saving.Normal type could applied in metal mining such as gold, zink

CJY10 Ton Underground Mining Trolley Locomotive

Introduction of 2.5 ton battery locomotive

China 2.5 Ton Explosion-proof battery locomotive is applied in coal mining or place with huge humidity, this locomotive adopts IGBT controller, which have the advantages of energy-saving.

Normal type could applied in metal mining such as gold, zink, copper mining.

And it is easy to operate, having small size with the feature of flexbile.


The traction force of a 2.5 ton battery locomotive could up to 25 ton.


Locomotive Avantage Please Click: Locomotive Advantages.

Operation video of this battery locomotive



Shipment and one site details

2.5t battery locomotive 2.jpg

shipment and site 8.jpg

shipment and site 11.jpg

shipment and site 6.jpg






Technical Specification


                                                                                                                     Model CTY2.5/679G(B)
Dead weight 2.5t
Track gauge 600762 or 900mm
Traction force 2.55kN
Max traction force 6.13kN
Speed 4.54km/h
Battery device Lithium battery 51.2v 300ah
Lead acid battery 48V330AH
Motor power 3.5kW×1
Dimensions Length 2330mm
width 9141076 or 1212mm
Height 1550mm
Wheelbase 650mm
Wheel diameter Φ460mm
Min turn radius 5m
Controlling way Resistance or IGBT chopper
Brake way Mechanical brake
