The ZWY120 wheel scraper mucking loader is a powerful and versatile machine that is designed for high-production mucking in underground mines. It features a large bucket capacity, a powerful engine, and a robust design that can withstand the toughest conditions.

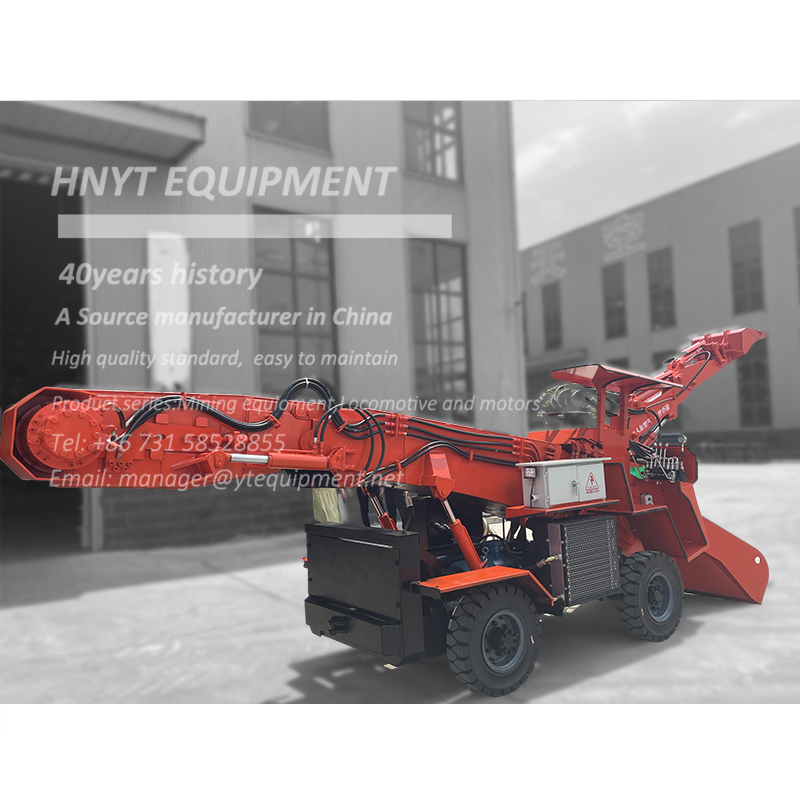

ZWY120 Wheel Scraper Mucking Loader
The ZWY120 wheel scraper mucking loader is a powerful and versatile machine that is designed for high-production mucking in underground mines. It features a large bucket capacity, a powerful engine, and a robust design that can withstand the toughest conditions.

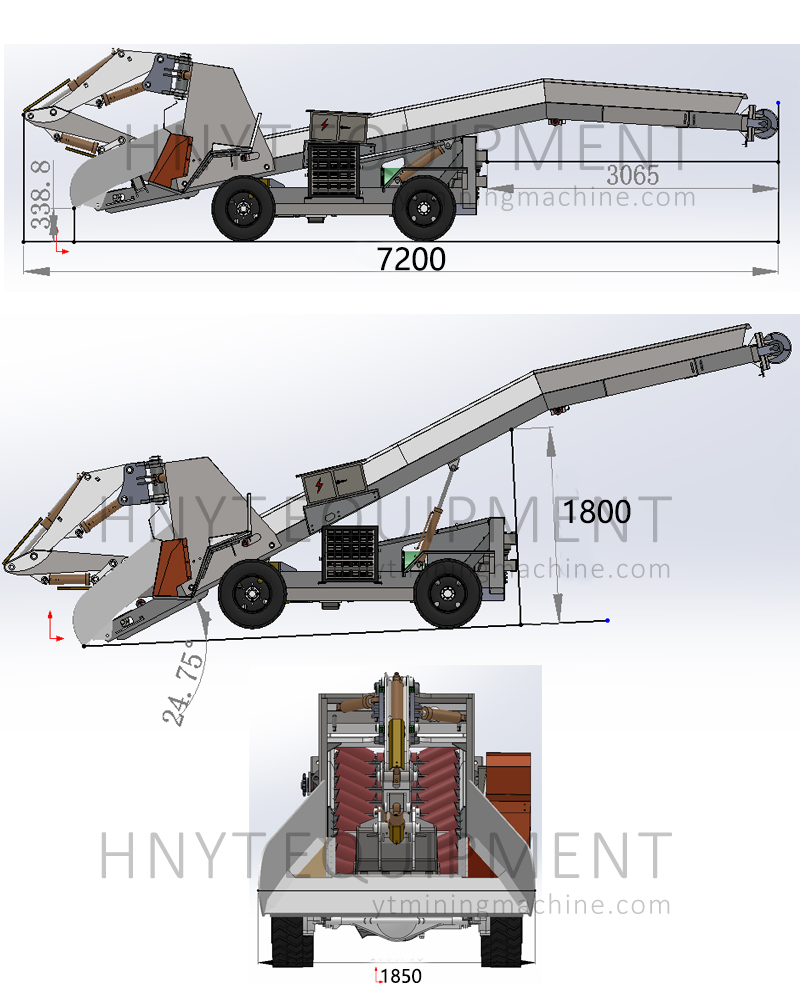

Outline Drawing of crawler mucking loader
←ZWY80 Wheel Scraper Mucking Loader
No Information→
| Wheel scraper mucking loader parameter table | ||||
| Index | Unit | ZWY-1.7-80 | ZWY-1.8-120 | |
| Loading capacity | M3/H | ≤80 | ≤120 | |
| Total weight | KG | 5800±200 | 6200±200 | |
| Wheelbase | MM | 1600 | 1780 | |
| Gauge | MM | 1460/1460 | 1640/1480 | |
| Minimum turning radius | R | ≤5 | ≤6 | |
| Minimum ground clearance | MM | 190 | 190 | |
| Digging width | MM | 3200 | 3500 | |
| Digging depth | MM | 450 | 540 | |
| Digging height | MM | 2900 | 3100 | |
| Digging distance | MM | 1650 | 1750 | |
| Unloading height(customizable) | MM | 1700 | 1900 | |
| Unloading distance(customizable) | MM | 1900 | 3000 | |
| Gradeability | ° | ±12(Hard ground) | ±12(Hard ground) | |
| Conveyor belt speed | M/S | 0.54 | 0.54 | |
| Total motor power | KW | 30(Double 15) | 30(Double 15) | |
| Main motor power | KW | 30(Double 15) | 30(Double 15) | |
| Electric drum power | KW | / | / | |
| Fan power | KW | 0.8 | 0.8 | |
| Walking speed | KM/H | High 5.5,low 3 | High 5.5,low 3 | |
| Rated operating pressure | Mpa | 15 | 15 | |
| Dimensions | L | MM | 6600±50 | 7500±50 |
| W | MM | 1750±50 | 1850±50 | |
| H | MM | 1800±50 | 2000±50 | |
| Adapation dimension | M | 2.4*2.4 | 2.8*2.8 | |
