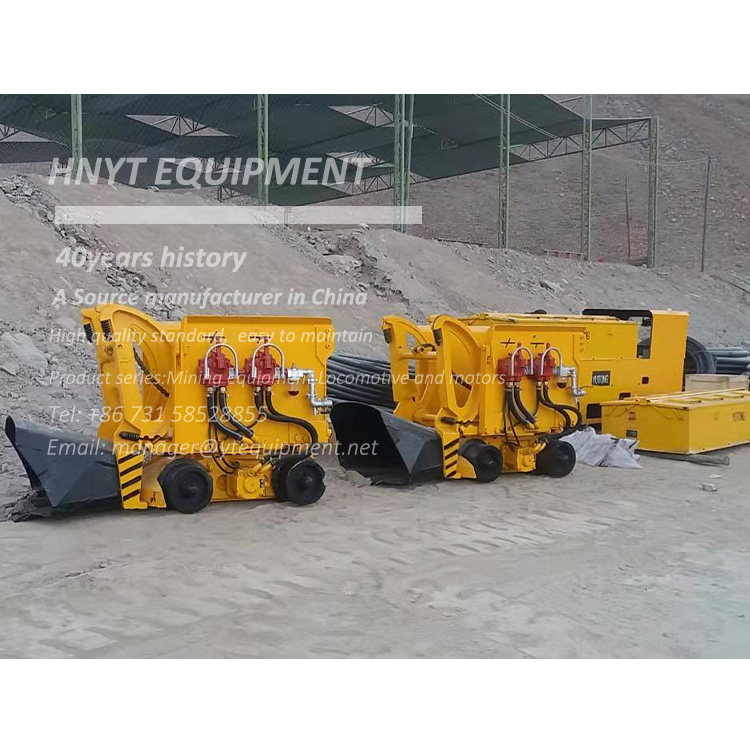

Pneumatic Loader/ Air rock Loader Machine

Pneumatic rock loader is a orbital loader with single bucket directly unloaded its main use is loading the rocks and ore blasting down the breakout into the mine car loading rock coal limestone or sand etc in the open air also. Pneumatic rock

CJY10 Ton Underground Mining Trolley Locomotive

 Pneumatic rock loader is a orbital loader with single bucket directly unloaded its main use is loading the rocks and ore blasting down the breakout into the mine car loading rock coal limestone or sand etc in the open air also.

Pneumatic rock loader fbr rail gauge 600 mm height at 2.25 meters above the roadway roadway width of 1.8-2.5 m slope less than 8 ° of the horizontal roadway work .

The packaging material a very wide and can load a variety of hard rock and ore the maximum size of rock can be installed up to 500 mm 200-300 mm in size rocks within the best efficiency.

Pneumatic rock loader structure is compact convenient and reliable operation good sealing dust-proof  moisture resistant.

It can working in a gas and flammable gas environment because of the use of compressed air power source.




Specification Table
Model Z-17AW Z-20AW Z-30AW ZQ-26
Loading capacity m³/h 20-30 30-40 50-60 40-50
Loading area m³ 0.17 0-20 0.3 0.26
Loading width m 1.7 2 2.2 2.7
Track gauge mm 500600762 or 900
Power Motor Motor Motor Wind motor
Walking power kw 10.5 10.5 15 10.5
Lifting bucket power KW 10.5 13 15 15
Unloading height mm 10.5 1360 1370 1250
Dimension mm Length  2120 2480 2620 2440
Width 1011 1380 1320 1380
Height 1920 1460 1545 1500
Weight 3760 3700 4600 2700
