5 Ton Mining Electric Trolley Locomotive

The 5 Ton Mining Electric Trolley Locomotive adopts IGBT speed control or resistance speed control or AC frequency speed control. The power supply is 250V DC . It adopts dual-motor traction and two-stage gear transmission. It has large traction and f

CJY10 Ton Underground Mining Trolley Locomotive

The 5 Ton Mining Electric Trolley Locomotive adopts IGBT speed control or resistance speed control or AC frequency  speed control. The power supply is 250V DC . It adopts dual-motor traction and two-stage gear transmission.
It has large traction and fast running speed. The side panels of the body are thick, rigid, and overload capacity is large. The braking method adopts mechanical and electrical braking, and the braking is stable and reliable.
The working height of the pantograph of this 6-ton mine overhead electric locomotive is 2000-2400mm, which is widely used in non-ferrous metal mines or coal mine ground transportation.

Motor Power: 7.5kw*2
Track Gauge: 500.600.762.900
Voltage: DC250V


Locomotive Avantage Please ClickLocomotive Advantages.

Operation Video





Shipment and one site details

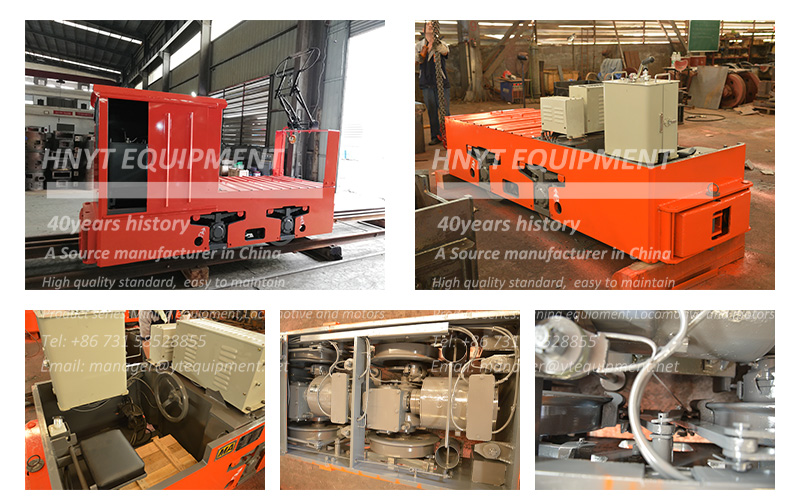

3t trolley locomotive 1 s.jpg

shipment and site 16.jpg

shipment and site 11.jpg

shipment and site 17.jpg

shipment and site 2.jpg






3-ton trolley locomotive 06.jpg

Model CJY5/679G(B)
Weight 5 ton
Track gauge 600762 or 900mm
Traction force 5.74kN
Max traction force 7.36kN
Speed 7.5km/h
Dc voltage 250V
Motor power 7.5kw*2
Dimensions Length 2750mm
Width 9401082 or 1220mm
Height 1550mm
Wheelbase 850 mm
Wheel diameter Φ520 mm
working height of Pantograph 1800~2000mm
Min turn radius 6m
Control method Resistance or IGBT
Brake method Mechnical or hydraulic
