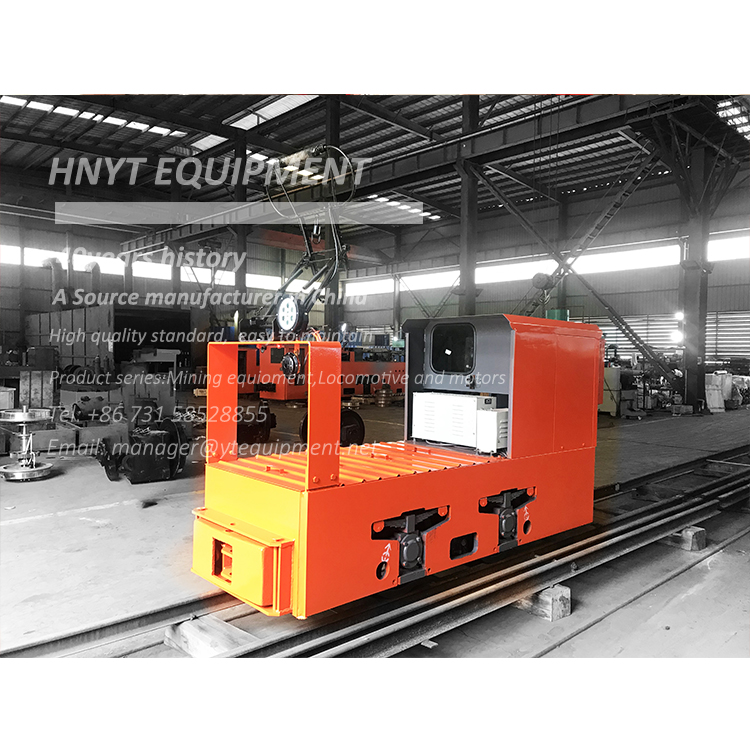

3 Ton Electric Trolley Mining Locomotive(250V)

This 3 ton electric locomotive is generally suitable for small mines as auxiliary transportation tools or main traction transportation tools.

CJY10 Ton Underground Mining Trolley Locomotive

1. Product Model And Traction Analysis(3 Ton Electric Trolley Mining Locomotive )

CJY3/679GB(P)

CJY: Trolley electric locomotive for mine

3: Indicates that the weight of the electric locomotive is 3 tons

6,7,9: Indicates that the gauge is divided into three types: 600,762,900 or as requirement

GB(P): G means resistance speed regulation GB means chopping speed regulation GP means frequency conversion speed regulation

The normal traction force of a 3-ton overhead electric locomotive is about 30 tons on a slope of 3‰ (need to subtract the weight of the locomotive)

2. Introduction To Electric Locomotive

Electric Trolley locomotives are mainly used for rail transportation in mines or tunnels and are mainly used to haul mine carts flatbed carts or man-cars for the transportation of ore manpower or materials. This 3 ton electric locomotive is generally suitable for small mines as auxiliary transportation tools or main traction transportation tools.

3. Inquiry Notice

1. Gauge selection: standard gauges are generally 600 762 and 900 and different gauges can be customized according to requirements.

2. Speed regulation mode: resistance chopping frequency conversion and remote control are four options.

3. DC voltage: 250V or 550V

4. Selection of braking methods: mechanical braking hydraulic braking and air braking.

5. If you don’t know how to choose the model you can provide the Transportation Distance, The Number Of Curves ,The Loading Capacity, The Working Time Of A Shift, the Working Height And Other Specific Working Conditions so that we can help you choose the most suitable electric locomotive.

Locomotive Avantage Please ClickLocomotive Advantages.

4.Video



Shipment and one site details

3t trolley locomotive 2.jpg

shipment and site 16.jpg

shipment and site 15.jpg

shipment and site 2.jpg

shipment and site 11.jpg






3-ton trolley locomotive 06.jpg

Model CJY3/679G(B)
Weight 3 ton
Track gauge 600762 or 900mm
Traction force 5.74kN
Max traction force 7.36kN
Speed 7.5km/h
Dc voltage 250V
Motor power 6.5kW×2/ 7.5kw*2
Dimensions Length 2750mm
Width 9401082 or 1220mm
Height 1550mm
Wheelbase 850 mm
Wheel diameter520 mm
working height of Pantograph 1800~2000mm
Min turn radius 6m
Control method Resistance or IGBT
Brake method Mechnical or hydraulic
