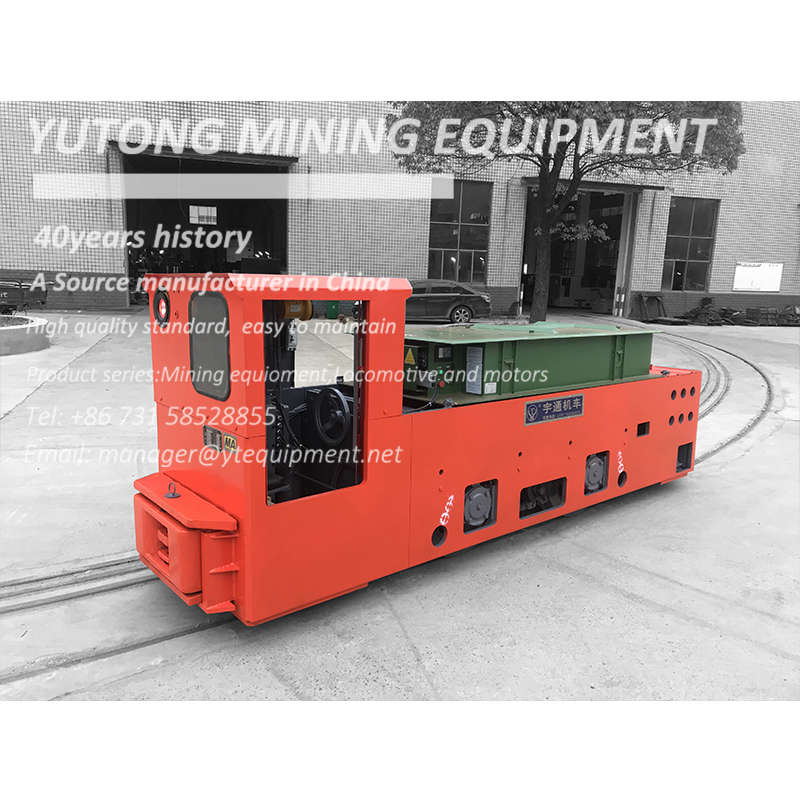

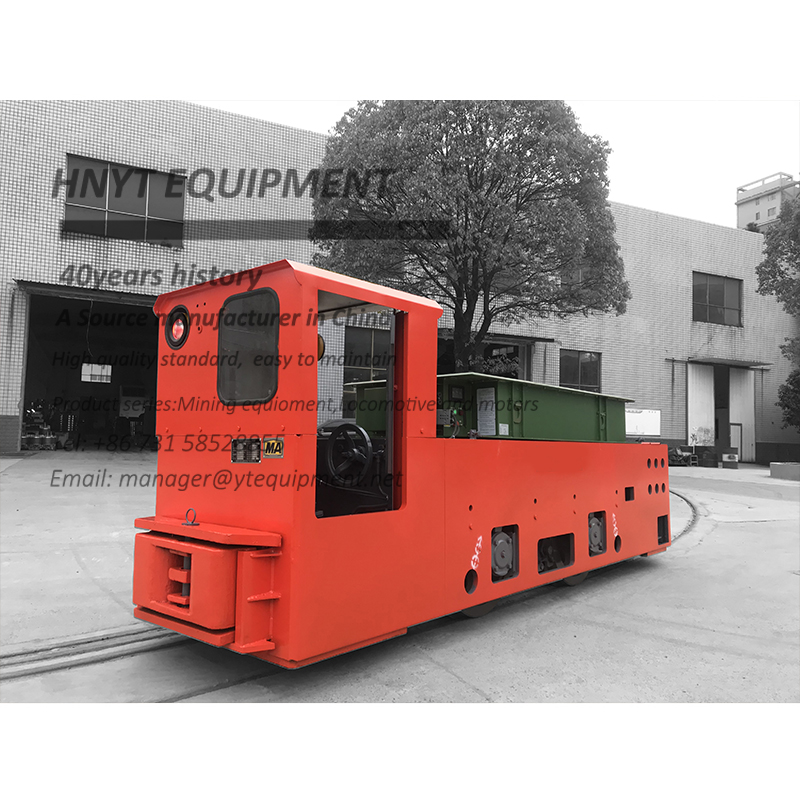

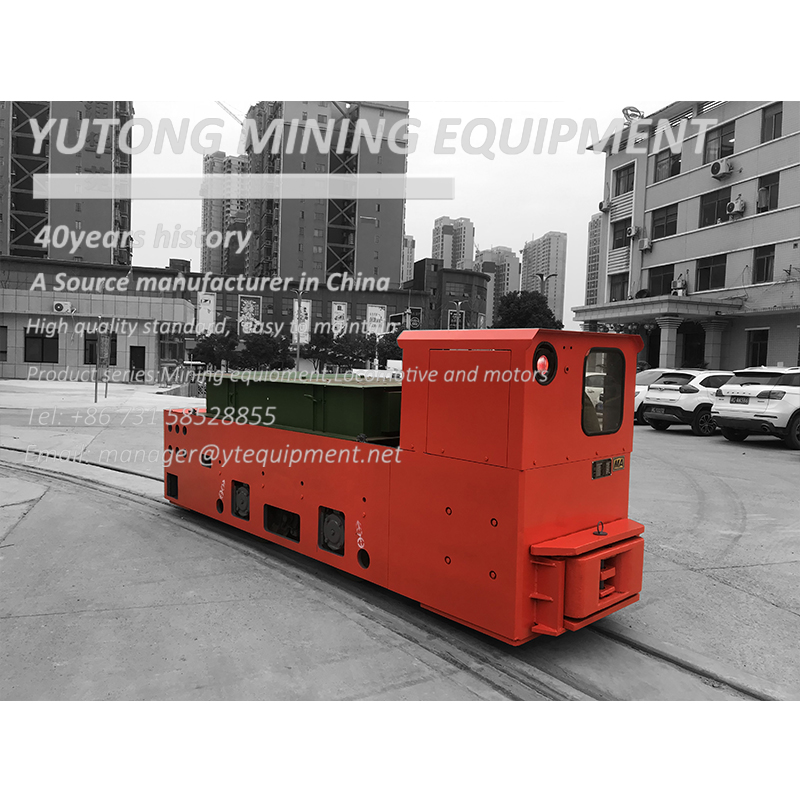

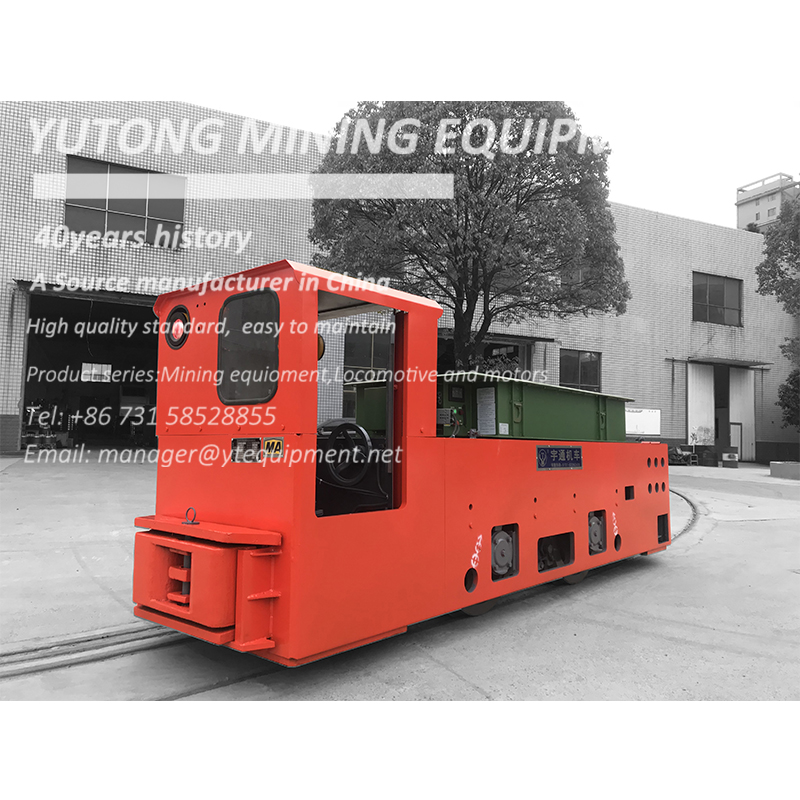

10 Ton Explosion-proof battery locomotive for underground coal mine

The working principle of the battery electric locomotive is to rely on the power supply, and then the current is directly supplied to the electric motor or the DC converter and then supplied to other electrical components of the electric locomotive.

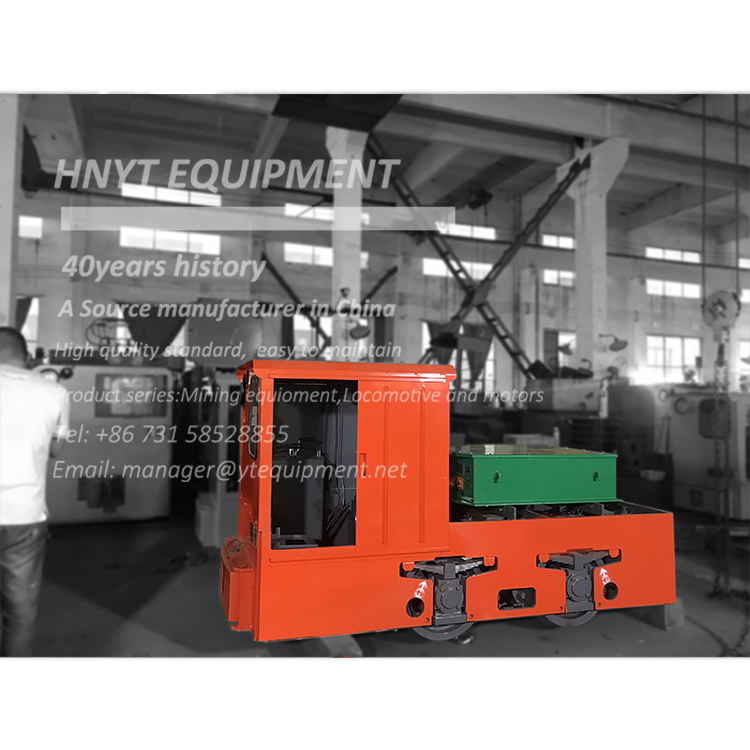

CJY10 Ton Underground Mining Trolley Locomotive

The working principle of the battery electric locomotive is to rely on the power supply, and then the current is directly supplied to the electric motor or the DC converter and then supplied to other electrical components of the electric locomotive.
The function of 10 ton explosion-proof battery locomotive is to transporating ores, wagons or people underground.

Details technical specification as  follows:

Model CTY(L)10/6、7、9G
Dead-weight 10 t
Track gague 600、762 or 900mm
Tracktion force 11.18kN 12.83kN
Speed 6.2km/h 7.5 km/h 7.8 km/h
Max traction 19.62kN
Battery device Voltage 110V 132V 140V 144V
Capacity 440Ah
Motor power 11kW×2 15kW×2
dimensions Lenght 4430mm 4250mm
Width 1050、1212 or 1350mm
Height 1600mm 1600mm
Wheel base 1100mm 1150mm
Wheel diameter680mm680mm &600mm
Min turn radius 7m
Controlling way Resistence or IGBT or AC Converter
Brake way Mechnical brake or air brake

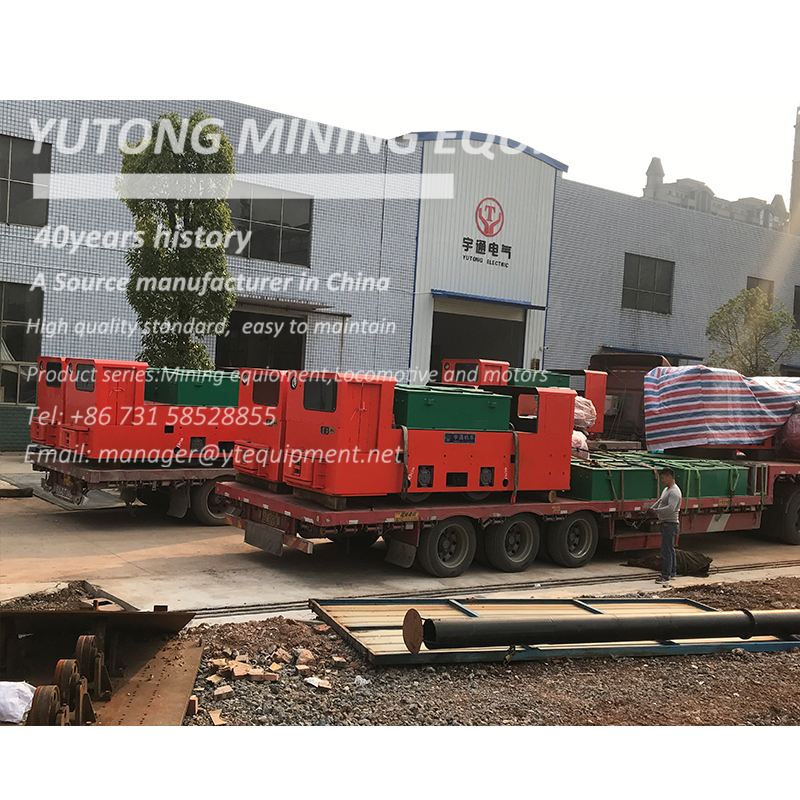

Shipment and one site details

8o12t battery locomotive 1.jpg

shipment and site 13.jpg

shipment and site 11.jpg

shipment and site 9.jpg
