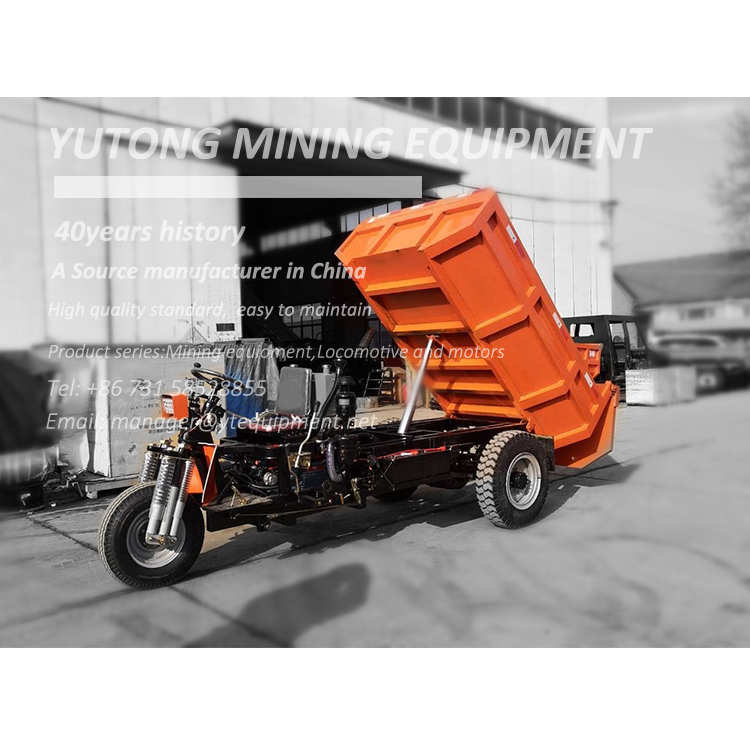

Mining Diesel Tricycle for transportation

Product Introduction Electric three-wheeled transport vehicles for mines can transport ore clean up slag transport tools personnel etc. in the mine tunnel. Electric dump trucks have no heat no smoke no noise and no pollution which brings good

Send Inquiry →
CJY10 Ton Underground Mining Trolley Locomotive
Product Introduction

Electric three-wheeled transport vehicles for mines can transport ore clean up slag transport tools personnel etc. in the mine tunnel. Electric dump trucks have no heat no smoke no noise and no pollution which brings good news to the miners who are suffering from the smoke and fire of diesel locomotives and maintain the air quality in the roadway. Three-layer craftsmanship of the whole vehicle original headlights and mirrors. Multi-layer tires heavy beams thicker carriages and suspended rear axles. Easy to drive flexible direction heavier chassis no skidding. (Customized carriages according to the size of the roadway) is a battery transportation tool used by factories or mines to transport raw materials semi-finished products finished products oreElectric three-wheeled transport vehicles for mines can transport ore clean up slag transport tools personnel etc. in the mine tunnel. Electric dump trucks have no heat no smoke no noise and no pollution which brings good news to the miners who are suffering from the smoke and fire of diesel locomotives and maintain the air quality in the roadway. Three-layer craftsmanship of the whole vehicle original headlights and mirrors. Multi-layer tires heavy beams thicker carriages and suspended rear axles. Easy to drive flexible direction heavier chassis no skidding. (Customized carriages according to the size of the roadway) is a battery transportation tool used by factories or mines to transport raw materials semi-finished products finished products ore


Operation Video



Hot Tags:

←No Information

No Information→

Productos relacionados
Model YT-1 YT-1.5 YT-20 YT-30 YT-50
Carriage volume 0.5m³ 0.75m³ 1.1m³ 1.4m³ 1.9m³
Loading Capacity 1000kg 1500kg 2000kg 3000kg 5000kg
Unloading hight 2100mm 2150mm 2250mm 2350mm 2350mm
Loading Hight 1200mm 1230mm 1250mm 1250mm 1250mm
Min ground clearance ≤240mm ≤240mm ≤240mm ≤250mm ≤250mm
Min turning radius ≤4200mm ≤4600mm ≤4800mm ≤4900mm ≤4900mm
Gradeability (heavy load) 6° ≤6° ≤6° ≤6° ≤6°
Maximum lift angle of carriage 45° 45° 45° 45° 45°
Tyre model
Front tire 450-1 Rear tire 600-4
Front tire 450-14 Rear tire 650-16
Front tire 500-1 Rear tire 650-16
Front tire 500-14 Rear tire 700-16
Front tire 600-10
Rear tire 700-16
Damping system Front: Damping shock absorber
Front: Damping shock absorber
After: 13 thick leaf springs
Main frame 9 pieces*10mm sub frame 6 pieces*10mm
Main frame: 9 pieces*10mm sub frame: 6 pieces*10mm
Operation System steering wheel
steering wheel
steering wheel
steering wheel
steering wheel
Light System FRONT AND BACK LED LIGHT FRONT AND BACK LED LIGHT
FRONT AND BACK LED LIGHT		 FRONT AND BACK LED LIGHT
FRONT AND BACK LED LIGHT
Max Speed 25km/h 25km/h 25km/h 25km/h 25km/h
Motor Power 3kw 3kw 5kw 3kw 7.5kw
Cargo box size (outer diameter) 1600*1000*400mm 1850*1200*400mm 2000*1380*450 2000*1350*500 2200*1400*600mm
Container board thickness 3mm 3mm 3mm 3mm 3mm
Dimensions 3100*1150*1200 3350*1300*1250 3500*1380*1250 3800*1350*1450 3800*1400*1550
Frame welding welding welding welding welding
Weight 860kg 900kg 1160kg 1200kg 1500kg
Control system Inbol Controller Inbol Controller Inbol Controller Inbol Controller Inbol Controller
Wheelbase 1150 mm 1300 mm 1350 mm 1400 mm 1400 mm
