Mining Wagons / Rail Wagons for transportation

Application characteristics and working environment ofbucket-tippingminecar Thebucket-tippingminecaris a narrow-gauge railway transportation vehicle for transporting coal ore ballast and other bulk materials in the mine. Generally it must betract

Send Inquiry →
CJY10 Ton Underground Mining Trolley Locomotive

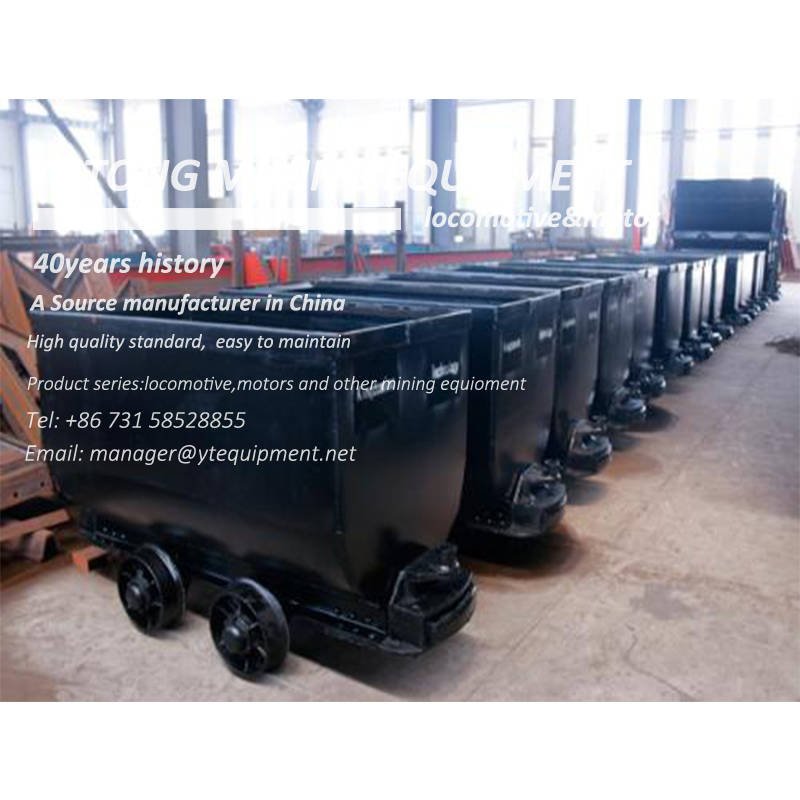

Application characteristics and working environment of bucket-tipping mine car
The bucket-tipping mine car is a narrow-gauge railway transportation vehicle for transporting coal ore ballast and other bulk materials in the mine. Generally it must be tract by a locomotive or a winch.
According to different structures and unloading methods they are divided into four categories: bucket-tipping mine car fixed mine car single-side curved rail dumping mine car and bottom-dumping mine car.

Operation video


Hot Tags:

←No Information

Bucket-tipping mine car/Wagons→

Productos relacionados
Technical performance table of bucket-tipping mine car
  Volume Nominal loading
Maximum loading		 Gauge Dimensions Wheel base Wheel diameter Haule height Traction Minimum plane operating radius  Body weight Unloading angle
Length
Width
High
  m³ kg kg G mm L mm B mm H mm C mm D mm h mm kN m kg °
KFU0.75-6 0.75 1800 1800 600 1700 980 1250 600 300 320 60 9 ≤740 ≥40°
KFU1.0-6 1 2000 2500 600 1970 1070 1250 600 300 320 60 9 ≤680 ≥40°
