22kw electric rake winch for underground tunnel22kw electric rake winch is a powerful and efficient machine designed for the most demanding mining applications. It‘s mainly used for ore handling and filling in metal mines and other mine pits or open pits. They are used for raking on slopes with a horizontal or inclination angle of no more than 44.
22kw electric rake winch for underground tunnel
22kw electric rake winch is a powerful and efficient machine designed for the most demanding mining applications. It's mainly used for ore handling and filling in metal mines and other mine pits or open pits. They are used for raking on slopes with a horizontal or inclination angle of no more than 44°.

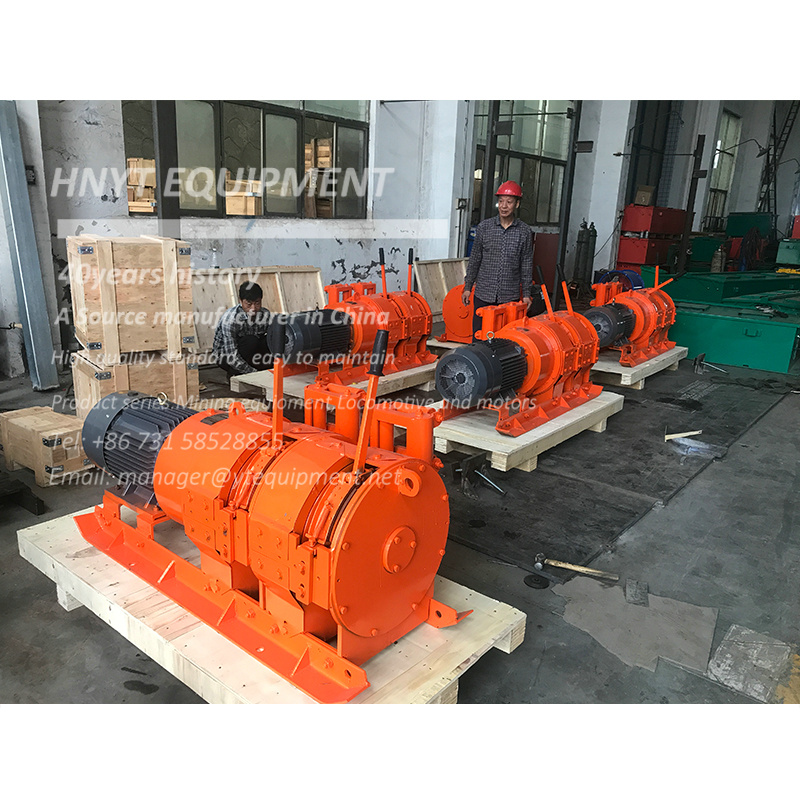

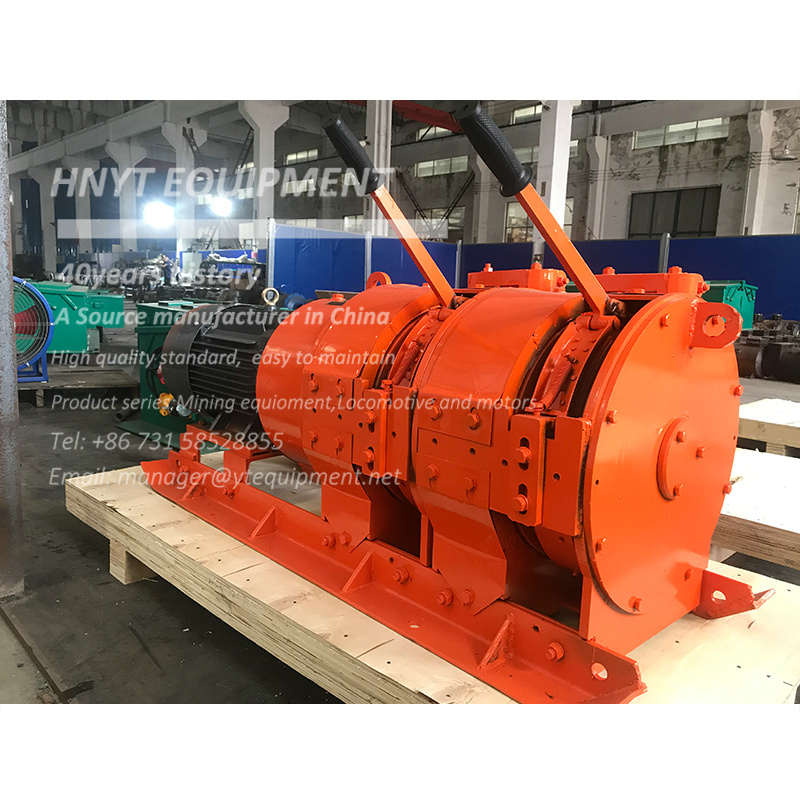

Shipment and site details
| Item | Unit | Model | ||||
| 2JP-7.5 | 2JP-15 | 2JP-22 | 2JP-30 | |||
| Average pulling force | KN | 8 | 14 | 20 | 27.5 | |
| Average speed of working steel wire | main steel wire | m/s | 1 | 1.1 | 1.2 | 1.2 |
| sub steel wire | 1 | 1.5 | 1.6 | 1.6 | ||
| Diameter of steel wire | main steel wire | mm | 9.3 | 12.5 | 14 | 15.5 |
| sub steel wire | mm | 9.3 | 11 | 11 | 14 | |
| Rope | Diameter | mm | 205 | 225 | 280 | 280 |
| Wheel dia | mm | 350 | 435 | 510 | 510 | |
| Width | mm | 80 | 125 | 160 | 160 | |
| Rope capacity of working drum | Main rope | m | 45 | 80 | 80 | 80 |
| Sub Rope | m | 45 | 100 | 100 | 110 | |
| Motor power | kw | 7.5 | 15 | 22 | 30 | |
| Motor Rotating speed | m/s | 1440 | 1460 | 1470 | 1470 | |
| Dimensions | mm | 1210*565*490 | 1525*660*620 | 1600*730*640 | 1650*820*700 | |
| Weight(dont including the rake) | KG | ≤390 | ≤660 | ≤900 | ≤1155 | |
