Flame-proof 3.5 Ton battery locomotive is special desgined for our South America clients it could be equiped with hydraulic brake method. The loading capacity is about 35 Ton ores including the self weight of locomotive and wagons. The application of 3.5Ton bat technical specification
locomotive for many years, covering the market of South America and Europe. Hoping we could start business relationship very soon."

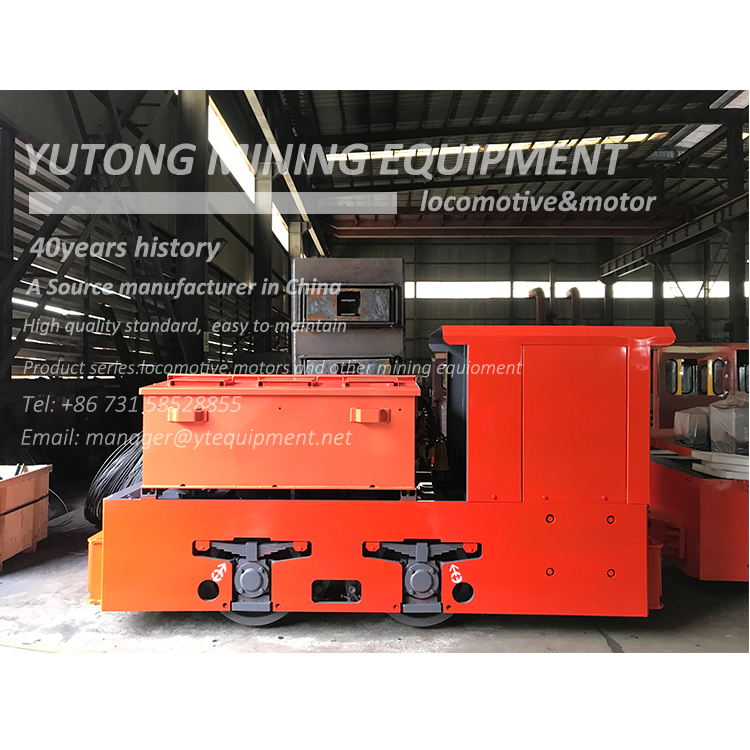

3.5 Ton battery locomotive is special desgined for our South America clients it could be equiped with hydraulic brake method.
The loading capacity is about 35 Ton ores including the self weight of locomotive and wagons.
The application of 3.5Ton battery locomotive

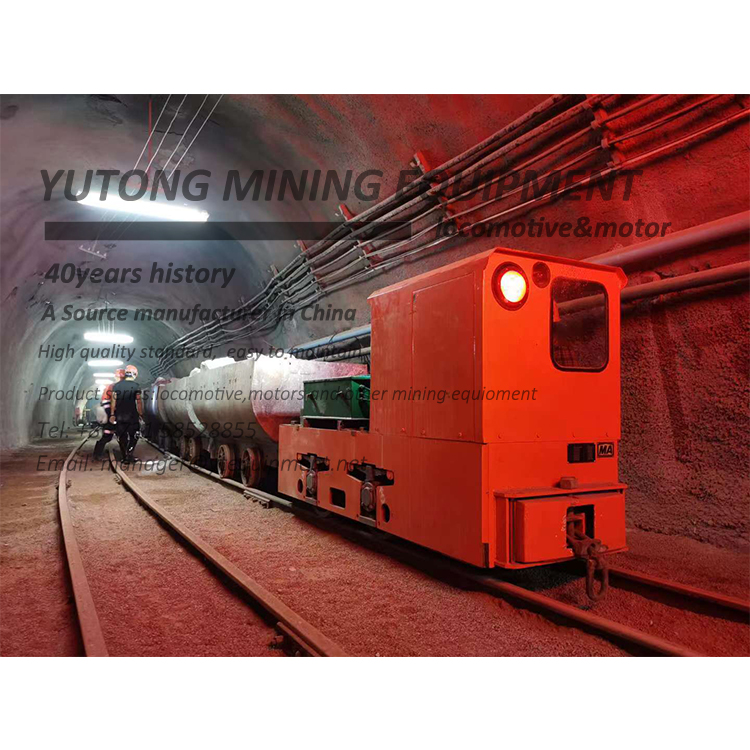

The underground electric locomotive will transport the ore (waste rock) discharged from the stope hopper stope patio or chute to the underground storage bin the bottom (or middle section) car yard or directly out of the mine through the flat tunnel Transport the materials and equipment from the depot at the bottom of the well (or the middle section) to the work site.
Locomotive Avantage Please Click: Locomotive advantages
We could offer durable flameproof battery locomotive with factory price. Our factory has specialized in mining locomotive many years and exported to South America and Europe, we are hope to become your long-term partner in China.
←Anti-Explosion 20 inch track gauge 3.5TN battery operated locomotive sell
Rail applicated 900mm rail gauge 3.5TN battery electric locomotive manufacturers→
Model | CTY3.5/6、7、9G(B) | |||
Total-weight | 3.5t | |||
Track gague | 500、600、762 or 900mm | |||
Tracktion force | 7.06kN | |||
Max traction | 12.26kN | |||
Speed | 7km/h | |||
Battery device | Voltage | 90V | ||
Capacity | 385Ah | |||
Motor power | 7.5 kW×2 | |||
dimensions | Lenght | 3170mm | ||
Width | 920、1082 or 1220mm | |||
Height | 1550mm | |||
Wheel base | 850mm | |||
Wheel diameter | Φ520mm | |||
Min turn radius | 6m | |||
Controlling way | Resistence or IGBT | |||
Brake way | Mechnical brake or hydraulic |
