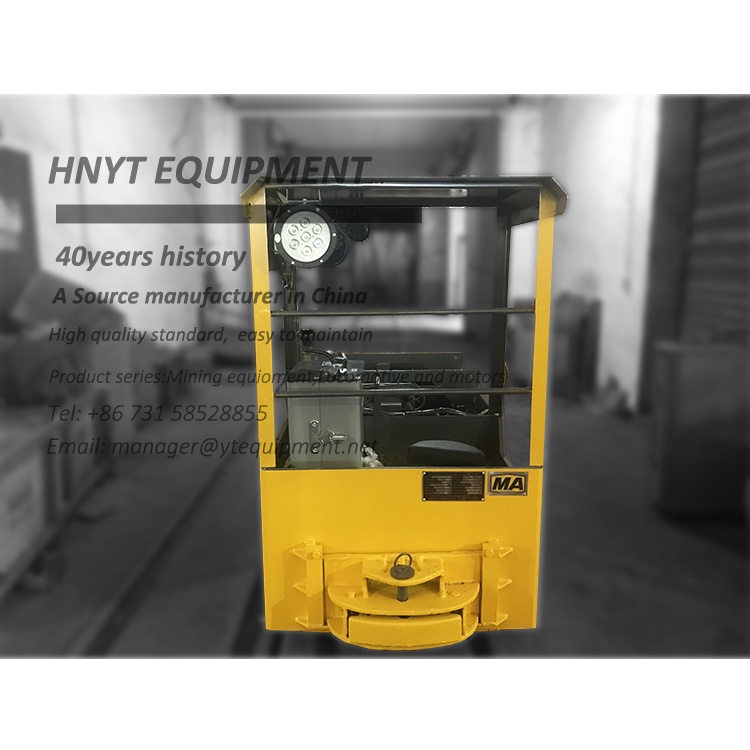

Explosion-proof 18 inch track gauge CAY 2.5 battery operated locomotive technical specification

Explosion-proof 2.5 Ton Battery Powered Locomotive with hydraulic brake will be more safer when it put into application. This locomotive is under the requirements of our South America clients. technical specification

CJY10 Ton Underground Mining Trolley Locomotive
The mining battery electric locomotive is a kind of rail transportation, but it is mainly used in mine transportation. Due to the different size of the roadway, it can be used as a main roadway transportation tool or an auxiliary transportation tool. It is mainly used for the transportation of ore, materials and manpower on the road where the track is laid. It is usually used in conjunction with equipment such as mine carts, flatbed trucks and people's vehicles, and is generally suitable for short-distance transportation within 5Km.

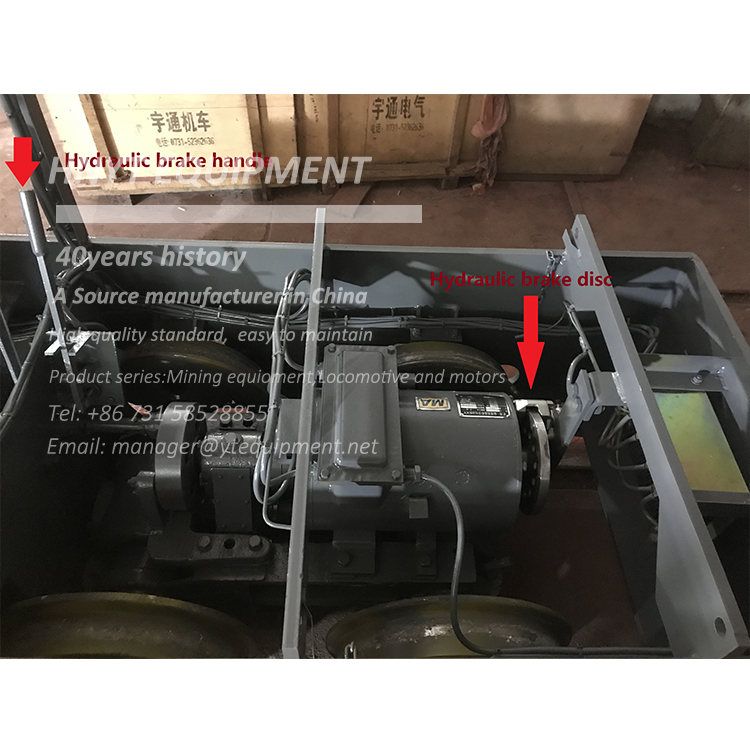

2.5 Ton Battery Powered Locomotive with hydraulic brake will be more safer when it put into application.
This locomotive is under the requirements of our South America clients.


We could offer durable flameproof battery locomotive with factory price. Our factory has specialized in mining locomotive many years and exported to South America and Europe, we are hope to become your long-term partner in China.



Technical Specification

Model CTY2.5/6、7、9G(B)
Dead weight 2.5t
Track gauge 600、762 or 900mm
Traction force 2.55kN
Max traction force 6.13kN
Speed 4.54km/h
Battery device Lithium battery 51.2v 300ah
Lead acid battery 48V330AH
Motor power 3.5kW×1
Dimensions Length 2330mm
width 914、1076 or 1212mm
Height 1550mm
Wheelbase 650mm
Wheel diameter Φ460mm
Min turn radius 5m
Controlling way Resistance or IGBT chopper
Brake way Mechanical brake
