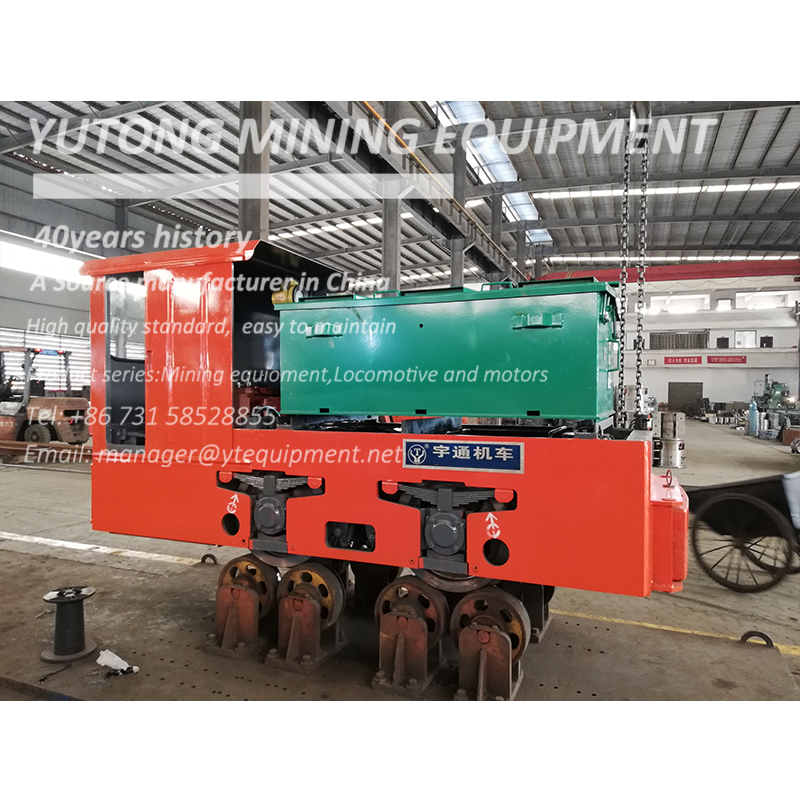

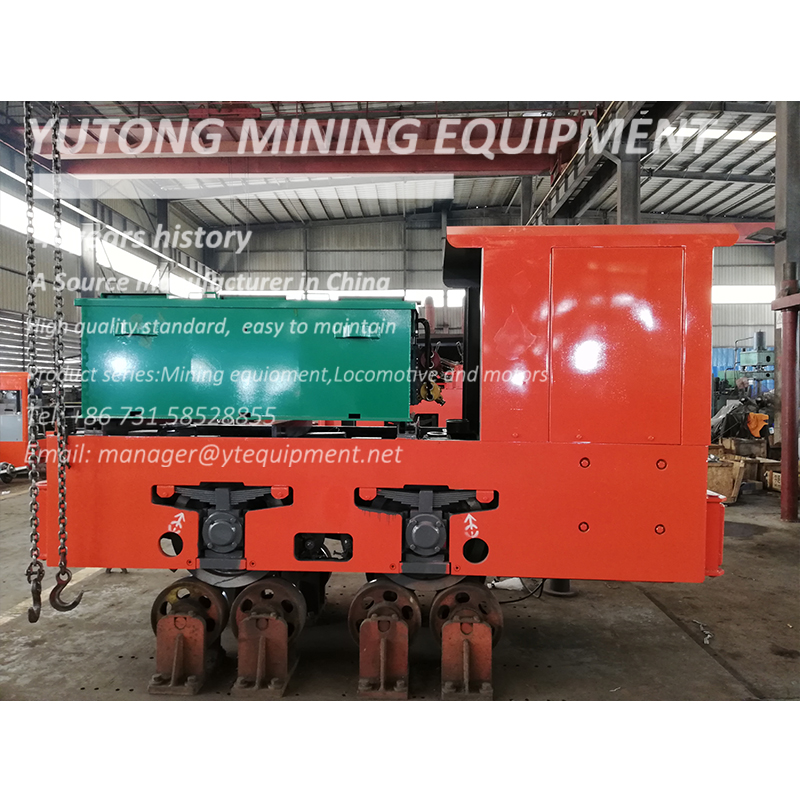

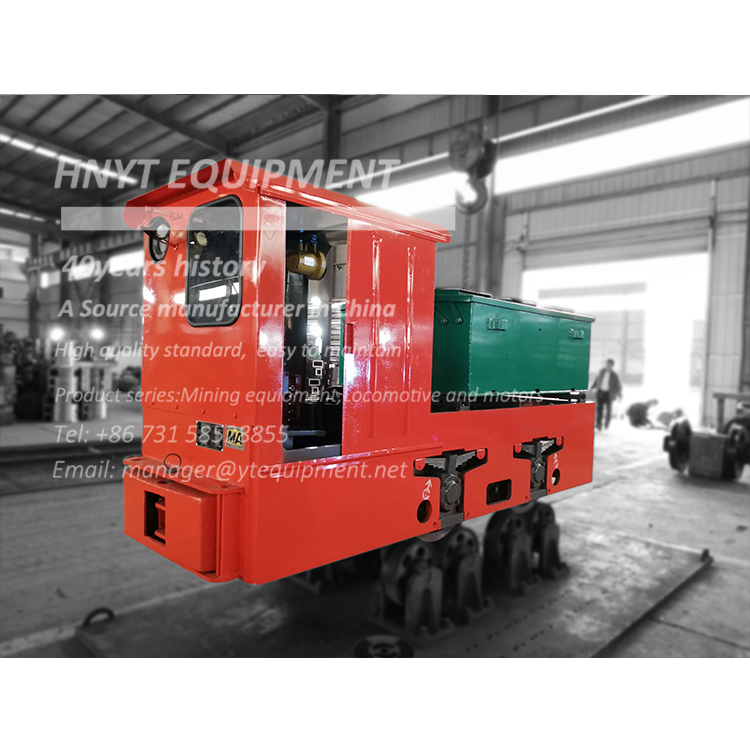

6 Ton Battery electric powered locomotive, the model is CAY6/6,7,9GB.
It is a normal type battery electric powered locomotive that could applied in the places without explosion gas, if need explosion-proof, please require.
The Brake method could be choosed with Mechnical or Hydraulic.
Traction Force of this locomotive could up to 60 Ton.
Locomotive Avantage Please Click: Locomotive Advantages.
Operation video:
The battery electric locomotive is a kind of rail transportation vehicle. It is used for the transportation of materials and human equipment on the mine track or tunnel track. It is mainly driven by the locomotive driven by the battery or lithium battery.
Model | CTY6/6、7、9G(B) | |||
Total-weight | 6t | |||
Track gague | 500、600、762 or 900mm | |||
Tracktion force | 7.06kN | |||
Max traction | 12.26kN | |||
Speed | 7km/h | |||
Battery device | Voltage | 90V | ||
Capacity | 385Ah | |||
Motor power | 7.5 kW×2 | |||
dimensions | Lenght | 3170mm | ||
Width | 920、1082 or 1220mm | |||
Height | 1550mm | |||
Wheel base | 850mm | |||
Wheel diameter | Φ520mm | |||
Min turn radius | 6m | |||
Controlling way | Resistence or IGBT | |||
Brake way | Mechnical brake or hydraulic |
