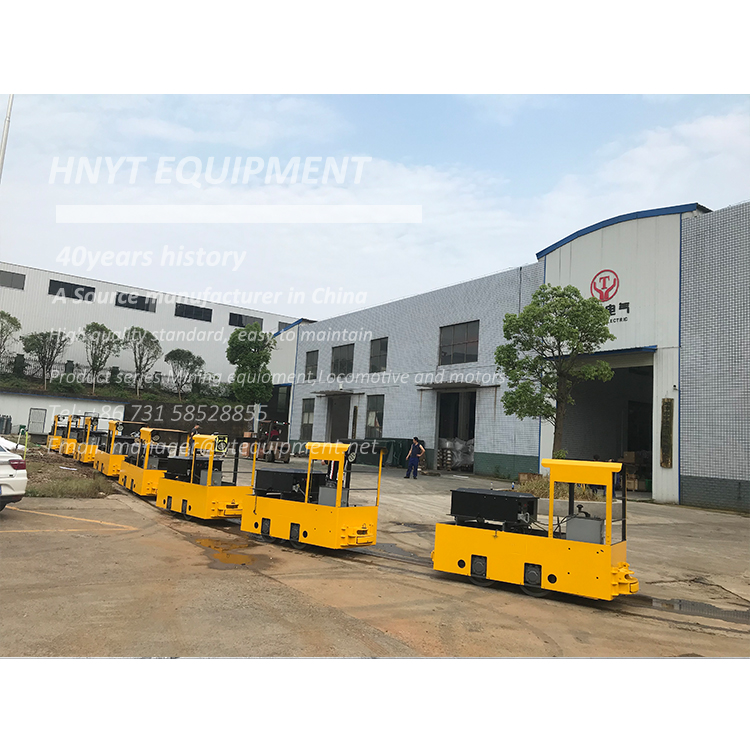

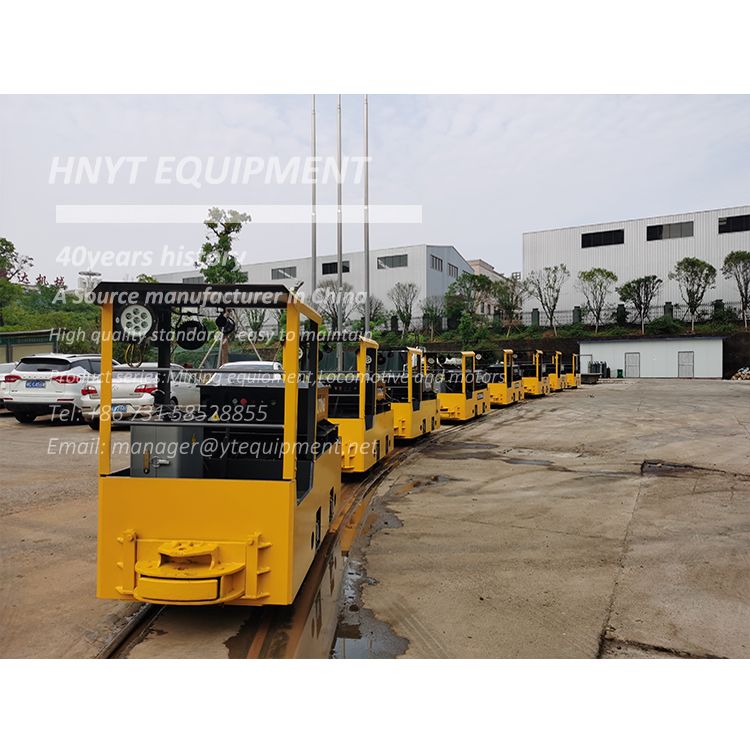

CAY3/6,7,9GB 3 Ton Battery Electric powered locomotive

1. Introduction Of Product Model CAY 3/6,7,9GB(P) CAY: Mining battery powered electric locomotive 3: Means the locomotive weight 5 Ton 5,6,7,9: Means the track gauge could be choose in 500, 600,762 or 900 or designed as your need The traction of a 5-

Send Inquiry →
CJY10 Ton Underground Mining Trolley Locomotive
1. Introduction Of Product Model
CAY 3/6,7,9GB(P)
CAY:Mining battery powered electric locomotive
3: Means the locomotive weight 5 Ton
5,6,7,9: Means the track gauge could be choose in 500, 600,762 or 900 or designed as your need
The traction of a 5-ton battery electric locomotive is about 30 tons on a slope of 3‰ (need to reduce the weight of the locomotive), that is 25 ton ores


2. What Should Know Before Make A Inqury?
1.How do i know if i need normal type or explosion-proof type?
Coal mining with gas, the locomotive will need explosion-proof, others normal type ifs ok
2. Gauge selection: standard gauges are usually with  600, 762 and 900, and different gauges can be customized according to requirements.
3. Controller Method: Cam controller, IGBT, frequency controller and remote control.
4. Battery Device: lead-acid battery (both ordinary and explosion-proof type), maintenance-free battery (both ordinary and explosion-proof type), lithium battery (ordinary type). Lithium batteries are maintenance-free and have a long service life. The service life is about 5 times that of ordinary lead-acid batteries.
5. Selection of braking methods: mechanical braking, hydraulic braking.
6. If you don’t know how to select, you can provide mine humidity, dust, transportation distance, number of bends, load weight, working hours of a shift, working height and other specific working conditions so that we can help you choose the most suitable Battery Electric locomotive.
Locomotive Avantage Please Click: Locomotive Advantages.

Operation Video:



Hot Tags: mining locomotive  |   battery locomotive  |   trolley locomotive  |   electric rake winch  |   pneumatic Rock loader  |

←CAY5/6,7,9G 5 Ton Mine Battery Powered Electric locomotive

CAY6/6,7,9GB 6 Ton Battery electric powered locomotive→

Related Product

Technical Specification

                                                                                                                     Model CTY3/6、7、9G(B)
Dead weight 2.5t
Track gauge 600、762 or 900mm
Traction force 2.55kN
Max traction force 6.13kN
Speed 4.54km/h
Battery device Lithium battery 51.2v 300ah
Lead acid battery 48V330AH
Motor power 3.5kW×1
Dimensions Length 2330mm
width 914、1076 or 1212mm
Height 1550mm
Wheelbase 650mm
Wheel diameter Φ460mm
Min turn radius 5m
Controlling way Resistance or IGBT chopper
Brake way Mechanical brake
