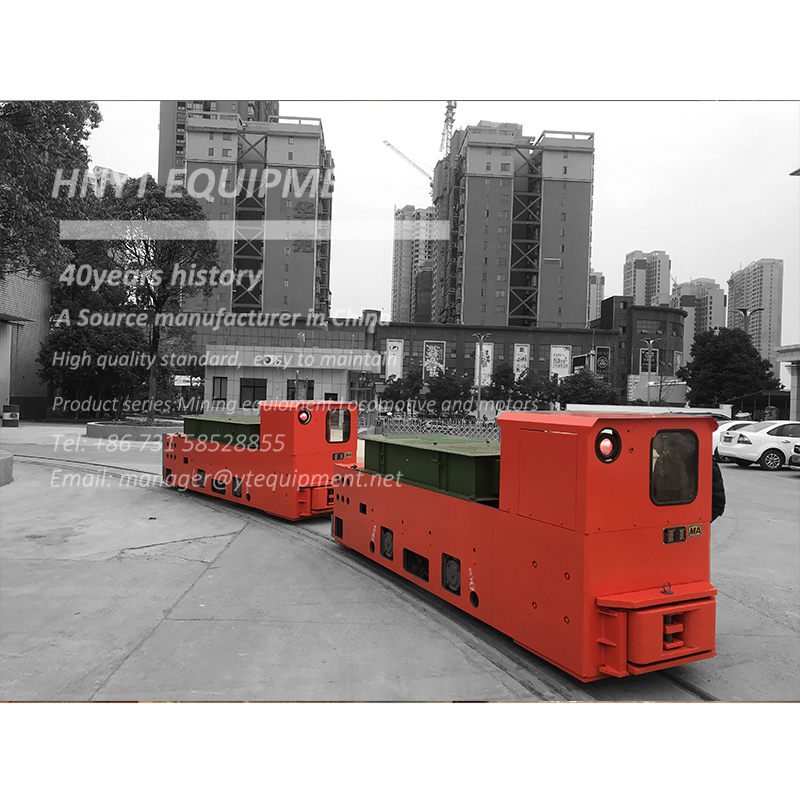

8 Ton Battery Locomotive(CTY8/6GB)

The 8 Ton battery locomotive is usually applied in middle or big mining as main traction vehicle. The max traction force could up to 80 ton

CJY10 Ton Underground Mining Trolley Locomotive

1.Product Model And Traction Analysis (8 Ton Battery Locomotive CTY8/6GB)

CTY8/5679GB(P)

CTY: China Battery Locomotivewhich have 2 type one is normal type and another is flameproof type

8: The electric locomotive weighs 8 tons

5679: Indicates that the gauge is divided into four types: 500600762900 or as required

GB(P): G means resistance speed regulation

GB means chopping speed regulation

GP means frequency conversion speed regulation

The normal traction of a 8 ton battery  locomotive is about 80 tons on a slope of 3‰ (need to reduce the weight of the locomotive)

2. Introduction Of Undeground Battery Electric Locomotive

Electric locomotives are mainly used for rail transportation in mines or tunnels which is applied in tracting mine wagons man car underground.

This 8 ton electric locomotive is generally suitable for small mines as auxiliary transportation tools or main traction transportation tools.

3. What Should Know Before Make A Inqury?

1. Does the electric locomotive need to be explosion-proof?
    If it is in a coal mine containing gas special explosion-proof locomotives are required. Ordinary type can be used in metal mines and mines that do not contain gas.

2. Gauge selection: standard gauges are generally 600762 and 900 and different gauges can be customized according to requirements.

3. Controller Method: resistance IGBT chopping frequency conversion and remote control are four options.

4. Power supply type selection:
lead-acid battery (both ordinary and explosion-proof type)
Maintenance-free battery (both ordinary and explosion-proof type) lithium battery (ordinary type).
Lithium batteries are maintenance-free and have a long service life. The service life is about 5 times that of ordinary lead-acid batteries.

5. Selection of braking methods: mechanical braking hydraulic braking and air braking.

6. If you don’t know how to select you can provide Mine Humiditydust  Transportation Distancenumber Of Bends Load Weight Working Hours Of A Shift And Other Specific Working Conditions so that we can help you choose the most suitable Battery Electric locomotive.


Locomotive Avantage Please ClickLocomotive Advantages.

4.Video




Shipment and one site details

8o12t battery locomotive 1.jpg

shipment and site 8.jpg

shipment and site 13.jpg

shipment and site 3.jpg

shipment and site 1.jpg






Technical Specification

Model CTY(L)8/6、7、9G
Dead-weight 8t
Track gague 600、762 or 900mm
Tracktion force 11.18kN 12.83kN
Speed 6.2km/h 7.5 km/h 7.8 km/h
Max traction 19.62kN
Battery device Voltage 110V 132V 140V 144V
Capacity 440Ah
Motor power 11kW×2 15kW×2
dimensions Lenght 4430mm 4250mm
Width 1050、1212 or 1350mm
Height 1600mm 1600mm
Wheel base 1100mm 1150mm
Wheel diameter Φ680mm Φ680mm Φ600mm
Min turn radius 7m
Controlling way Resistence or IGBT or AC Converter
Brake way Mechnical brake or air brake
