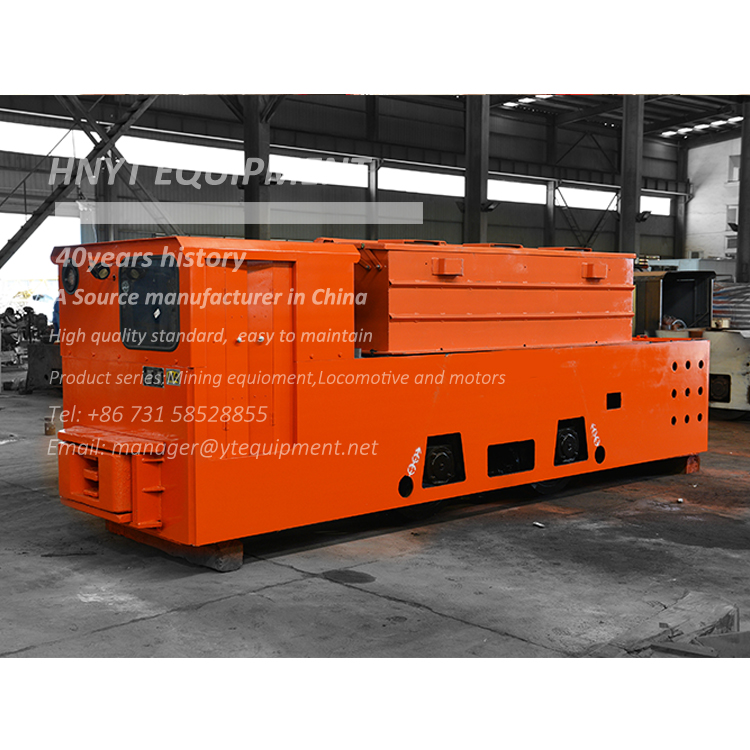

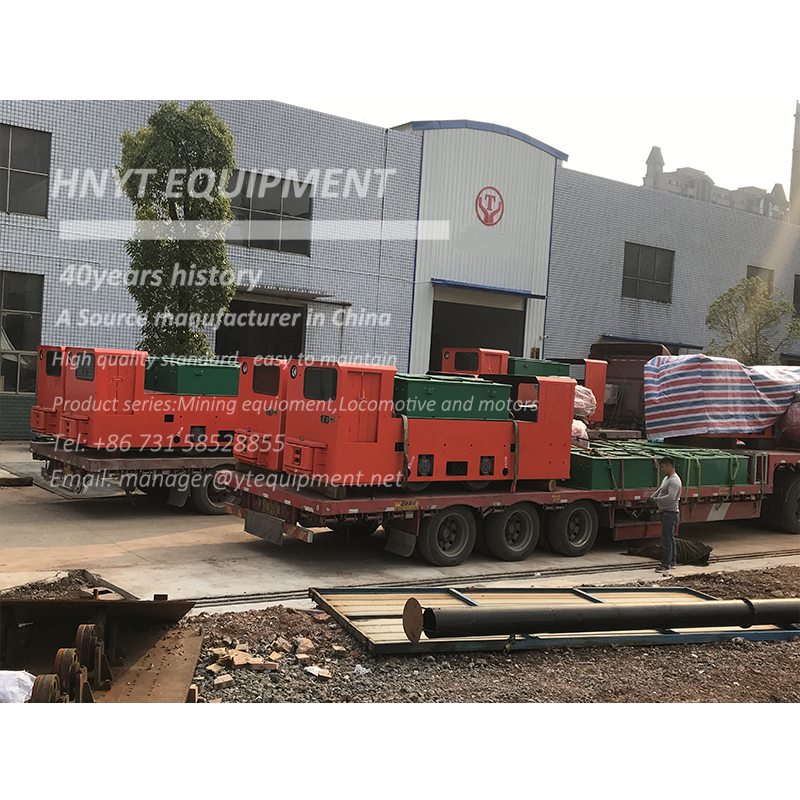

China 12 Ton Explosion-proof Battery Locomotive

The 12 Ton Explosion-proof battery locomotive produced in chinacan be operated in coal mining me<x>tal mining or tunnel construction. It is applied of IGBT Controller or Ac frequency controller. The main feactures is have high starting torquestrong tr

CJY10 Ton Underground Mining Trolley Locomotive
The 12 Ton Explosion-proof battery locomotive produced in china can be operated in coal mining metal mining or tunnel construction. It is applied of IGBT Controller or Ac frequency controller.
The main feactures is have high starting torquestrong traction force and carrying capacityenergy efficiency and low maintenance workload. It could applied of both air brake and electric braking functions and can work safely.

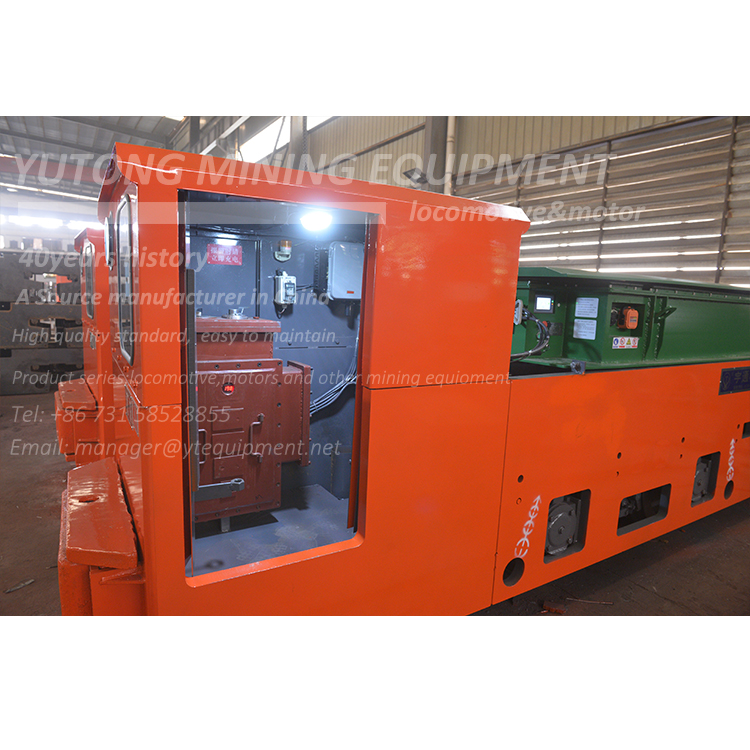

Two-en driver's cabs can be equipped with good rearview.


Locomotive Avantage Please Click: Locomotive Advantages.

Operation Video





12ton Battery Locomotive

Specifications

Adhesive / total weight (t)

12

Track gauge (mm)

600762 or 900

Traction (KN)

16.48

Max. Traction (KN)

29.43

Speed(km/h)

8.7

Max. Speed(km/h)

17.4

Battery Voltage (V)

192

Battery Capacity (Ah)

560

Power (KW)

22*2

Dimensions

Length(mm)

4530

Width(mm)

105012121350

Height(mm)

1600

Coupler height(mm)

320/430

Wheelbase (mm)

1220

Wheel diameter (mm)

680

Min Curve radius (m)

10

Controller

Resistance

Braking method

Mechanical Brake
Electrical Brake or Air Brake
