Pneumatic Rock Loader Rocker Shovel performance Characteristics: Downhole direct unloading bucket type pneumatic rock loader. Its purpose is to put the rock down into the tub. To achieve the mechanization of loading work, thereby reducing the labor intensity of workers, improve productivity.

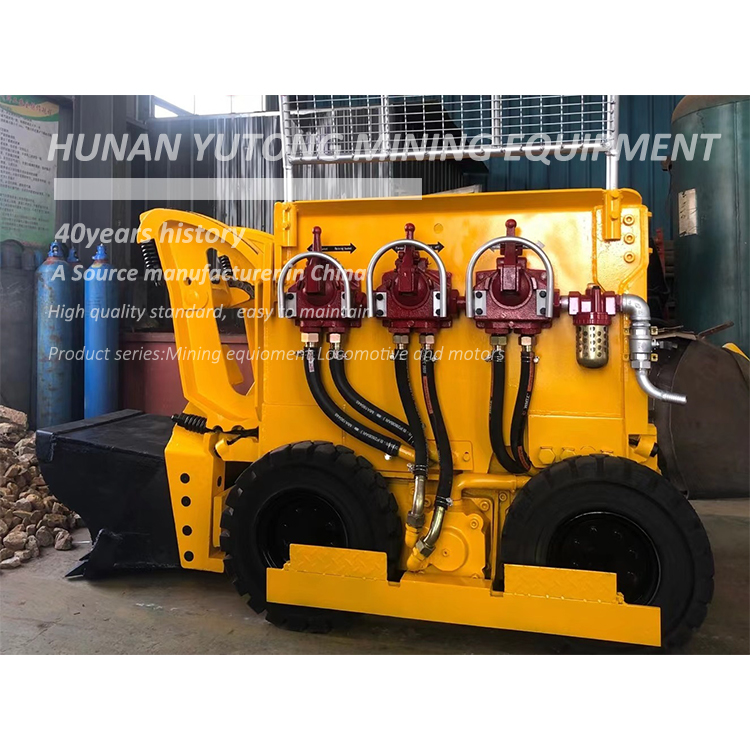

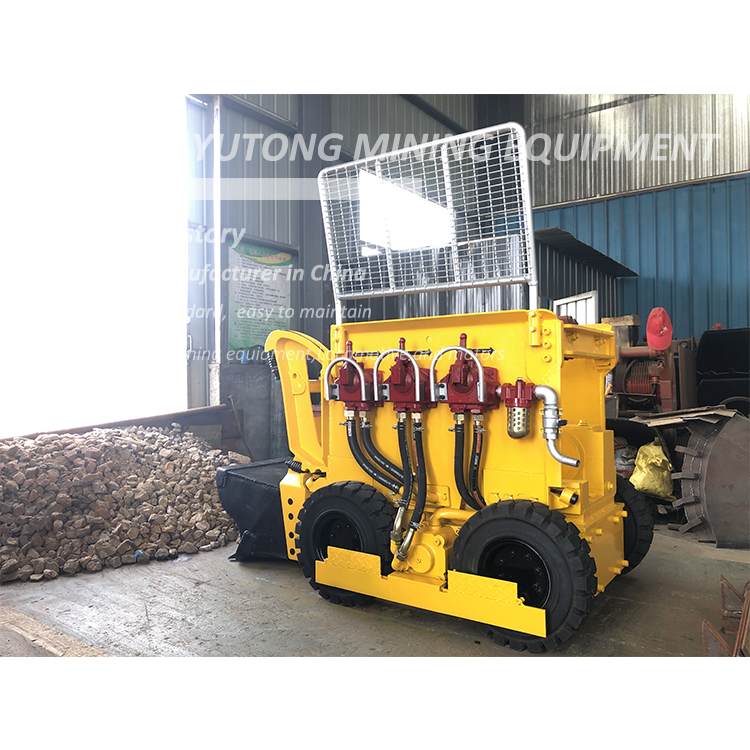

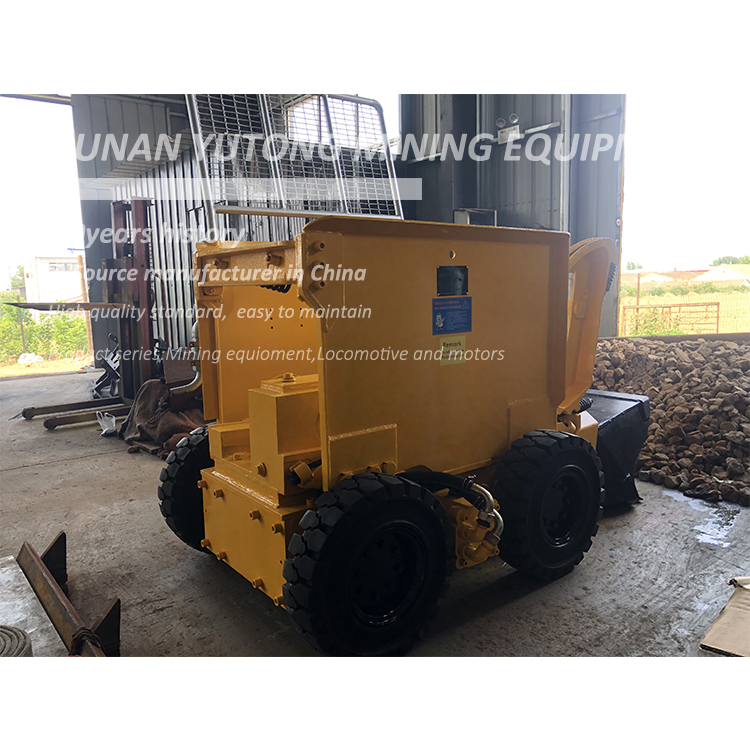

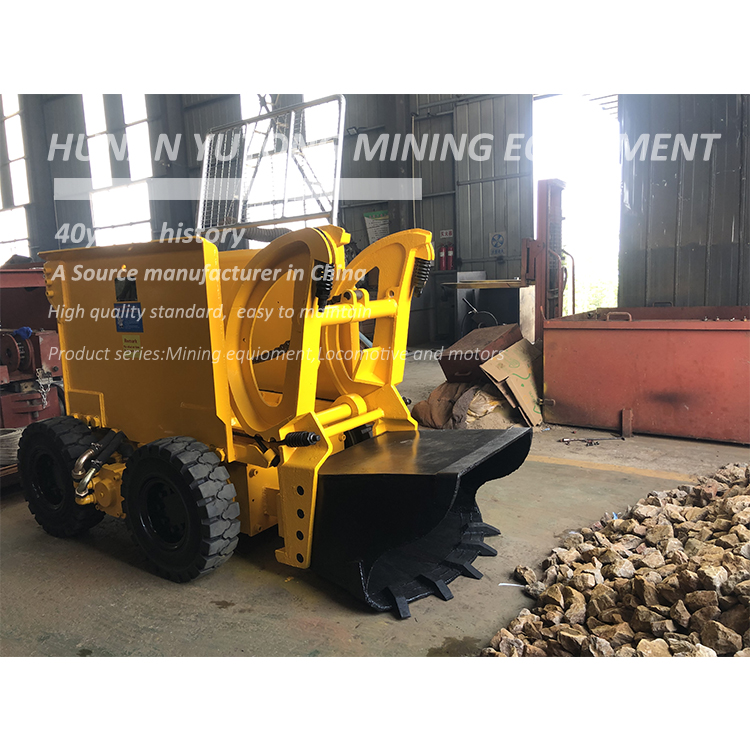

Wheel Type Pneumatic Shovel Rock Loader performance Characteristics: Downhole direct unloading bucket type pneumatic rock loader. Its purpose is to put the rock down into the tub. To achieve the mechanization of loading work, thereby reducing the labor intensity of workers, improve productivity. Wheel Type Pneumatic Shovel Rock Loader is mainly used for the horizontal exploration of pneumatic equipment, roadway, or tunnel roadway can also be used for cavern excavation or mine loading work.


This pneumatic Rock Shovel & Rock Loader can load wide range of materials. It is of high efficiency.



ModelModel
Loading capacity100m3/h70m3/h
Loading area0.45m30.3m3
Walking power20HP*29kw*2
Maximum air consumption17.6m3/min*217.6 m3 / min×2
Working pressure4.21-7.03kg/cm2(60-100psi)4.21-7.03kg/cm2(60-100psi)
Rising motor25HP*215kw
Maximum air consumption20m3/min20m3/min
Working pressure4.21-7.03kg/cm2(60-100psi)4.21-7.03kg/cm2(60-100psi)
Walking speed1.81m/s1.81m/s
Tire typesolid tiresolid tire
Rising height2600mm2380mm
dump width1200mm1200mm
Unloading height1500mm1400mm
Unloading distance457mm450mm
Machine length2800mm2600mm
