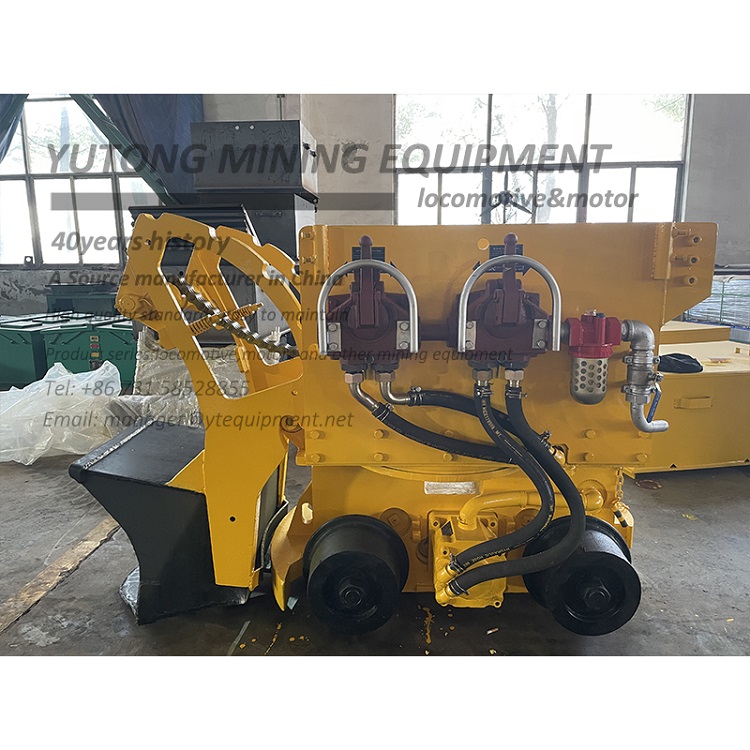

The ZQ-13 Pneumatic Rock Loader use air as the power source to supply the machine work.
It has a range application such as in metal mines coal mines and with great working efficiency.
It is a single-bucket orbital rock loader that directly unloads. Its main purpose is to load the rock and ore from the blasting caving in the mine cart.
It can also be used to load rocks and coal in the open air. Blocks limestone or sand etc. which to realize the mechanization of loading work.
The application work surface should be 1.8*2.5m.



Using the compressed air as power producer, thhe pneumatic Rock Shovel & Rock Loader can work in a condition with gas.


1Bucket volume0.13m3
2Technical productivity25m3/h
3 Walking motor
3.1Power9kw x 1each
3.2Speed2500r/min
3.3Maximum air consumption11.7m3/min x 2each
3.4Working air pressure4.21-7.03kg/cm2
4 Hoist bucket motor
4.1Power9kw
4.2Speed2500r/min
4.3Maximum air consumption15.6m3/min
4.4Working Air pressure4.21-7.03kg/cm2
5Walking speed1.4m/s
6External dimensions
6.1the length1860mm
6.1.1Put down the bucket1850mm
6.1.2Height1300mm
6.1.3Lifting the bucket1950mm
