ZWY50 Wheel Belt Mucking Loader
The ZWY50 wheel belt mucking loader is a high-performance and efficient machine that is ideal for a variety of underground mining applications. It features a robust design, a powerful engine, and a large bucket capacity, making it capable of handling even the most challenging tasks.

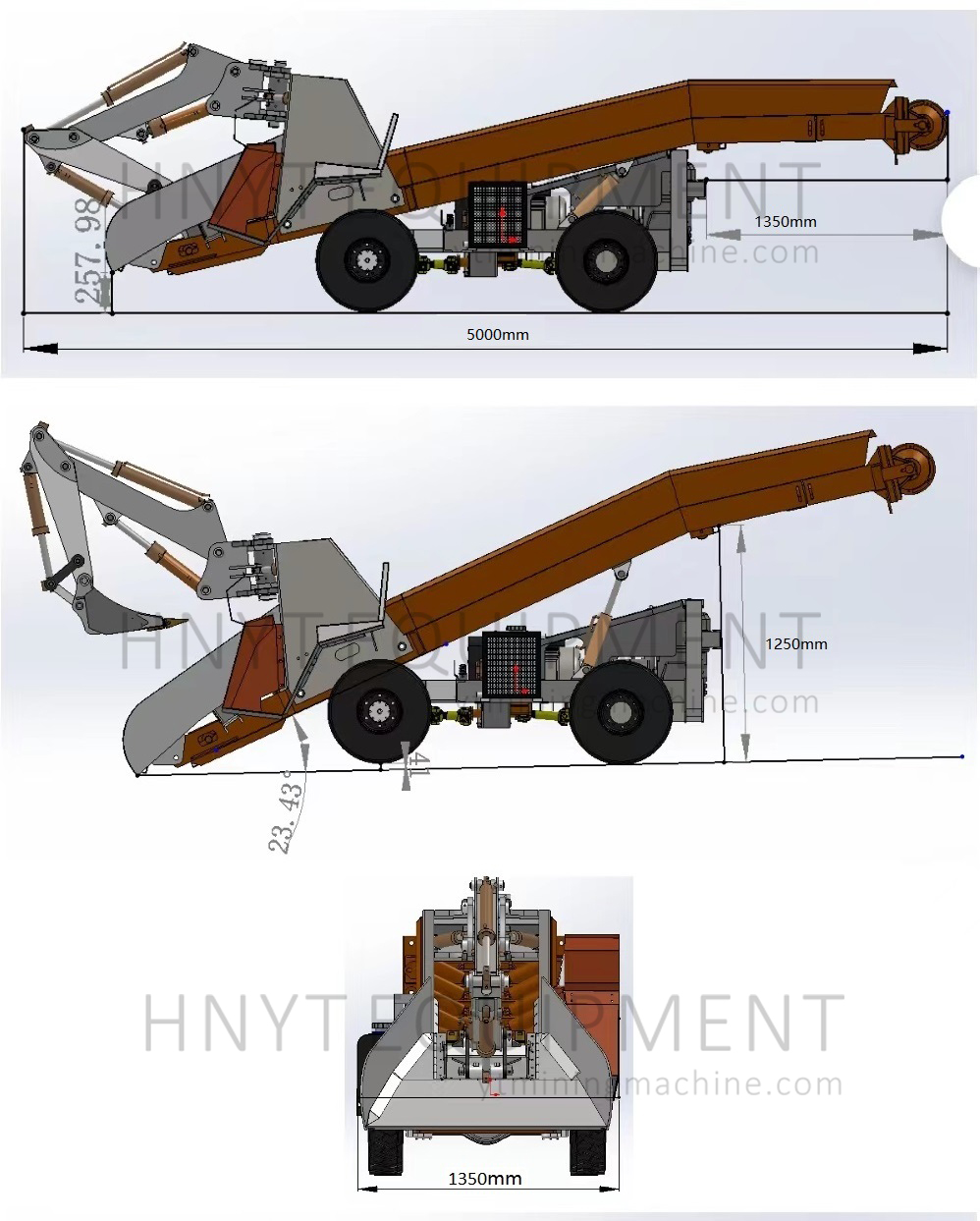

Outline Drawing of crawler mucking loader
| Wheel belt mucking loader parameter table | |||||||
| Index | Unit | ZWY-1.2-50 | ZWY-1.3-60 | ZWY-1.7-80 | ZWY-1.8-120 | ZWY-2.2-160 | |
| Loading capacity | M3/H | ≤50 | ≤60 | ≤80 | ≤120 | ≤160 | |
| Total weight | KG | 2800±200 | 2950±200 | 4200±200 | 4400±200 | 6000±200 | |
| Wheelbase | MM | 1250 | 1480 | 1600 | 1780 | 2700 | |
| Gauge | MM | 1120 | 1180/1130 | 1460/1460 | 1640/1480 | 1740/1720 | |
| Minimum turning radius | R | ≤4 | ≤4 | ≤5 | ≤6 | ≤7 | |
| Minimum ground clearance | MM | 180 | 180 | 190 | 190 | 190 | |
| Digging width | MM | 2200 | 2800 | 3200 | 3500 | 4200 | |
| Digging depth | MM | 260 | 350 | 450 | 540 | 700 | |
| Digging height | MM | 1750 | 2500 | 2900 | 3100 | 4200 | |
| Digging distance | MM | 1600 | 1600 | 1650 | 1750 | 2350 | |
| Unloading height(customizable) | MM | 1250 | 1350 | 1700 | 1800 | 2400 | |
| Unloading distance(customizable) | MM | 1350 | 1500 | 1900 | 3000 | 4000 | |
| Gradeability | ° | ±6(Hard ground) | ±6(Hard ground) | ±6(Hard ground) | ±6(Hard ground) | ±6(Hard ground) | |
| Conveyor belt speed | M/S | 0.8/0.63 | 0.8/0.63 | 0.8/0.63 | 0.8/0.63 | 0.8/0.63 | |
| Total motor power | KW | 11+5.5 | 11+5.5 | 15+5.5 | 18.5 | 22 | |
| Main motor power | KW | 11 | 11 | 15 | 18.5 | 22 | |
| Electric drum power | KW | 5.5 | 5.5 | 5.5 | / | / | |
| Fan power | KW | 0.2 | 0.2 | 0.2 | 0.75 | 0.75+1 | |
| Walking speed | KM/H | 3 | 3 | High 5.5,low 3 | High 5.5,low 3 | High 5.5,low 3 | |
| Rated operating pressure | Mpa | 15 | 15 | 15 | 15 | 15 | |
| Dimensions | L | MM | 5000±50 | 5600±50 | 6600±50 | 7200±50 | 11500±50 |
| W | MM | 1350±50 | 1400±50 | 1750±50 | 1850±50 | 2200±50 | |
| H | MM | 1500±50 | 1650±50 | 1800±50 | 1900±50 | 2600±50 | |
| Adapation dimension | M | 1.8*1.8 | 2.0*2.0 | 2.4*2.4 | 2.8*2.8 | 4.0*4.0 | |
