DPT-45 DC Traction Motor

DPT-45 DC Traction Motor ​is specially designed for Russian mining electric locomotives, and is suitable for K-10 and K-14 overhead electric locomotives.The 45kw DC motor is designed to operate at altitudes from -1500m to +2000m above sea level, with an ambient temperature of +35 to -40C; 98% relative humidity with moisture condensation at 35C; in the case of methane, the environment is explosion proof , and does not contain corrosive gases and vapors, the concentrations of which would damage the protective coating and insulation of current-carrying parts; the maximum dust content of mine dust is 250 cubic meters.

CJY10 Ton Underground Mining Trolley Locomotive

DPT-45 DC Traction Motor is specially designed for Russian mining electric locomotives, and is suitable for K-10 and K-14 overhead electric locomotives.

The 45kw DC motor is designed to operate at altitudes from -1500m to +2000m above sea level, with an ambient temperature of +35° to -40°C; 98% relative humidity with moisture condensation at 35°C; in the case of methane, the environment is explosion proof , and does not contain corrosive gases and vapors, the concentrations of which would damage the protective coating and insulation of current-carrying parts; the maximum dust content of mine dust is 250 cubic meters.

motors 1.jpg

motors 2.jpg

motors 3.jpg

motors 4.jpg

motors 5.jpg

motors 6.jpg

motors 7.jpg

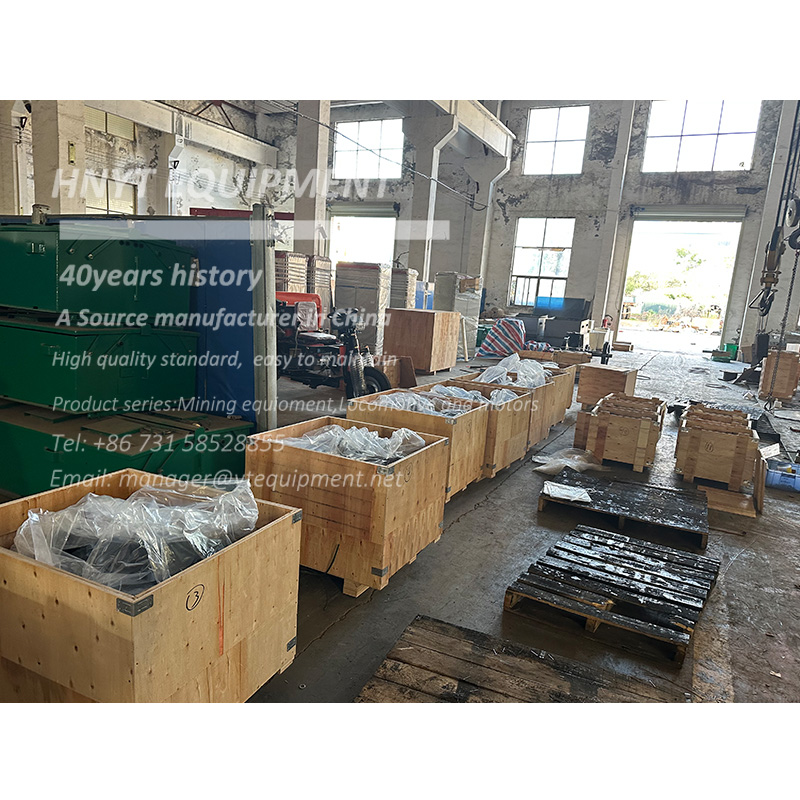

shipment and site 18.jpg



Hot Tags: DC motor  |   traction motor  |

Structure and Working Principle Brush

Certification ISO9001

Brand HNYT

Power 52kw

Voltage 550V

Current 106A

Rotating Speed 1300

Max. Current 212A

Max.Rotating Speed 2800

Structural Type Horizontal

Working Rating S2-60min

Excitation Rate 100%

Insulation Grade F

Cooling Type IC40

Weight 610kg

Certificate ISO, Ma, Ka

Usage Mining Electric Locomotive

Transport Package Wooden Package

Trademark HNYT

Origin Xiangtan, China

Production Capacity 2000 Set /Year
